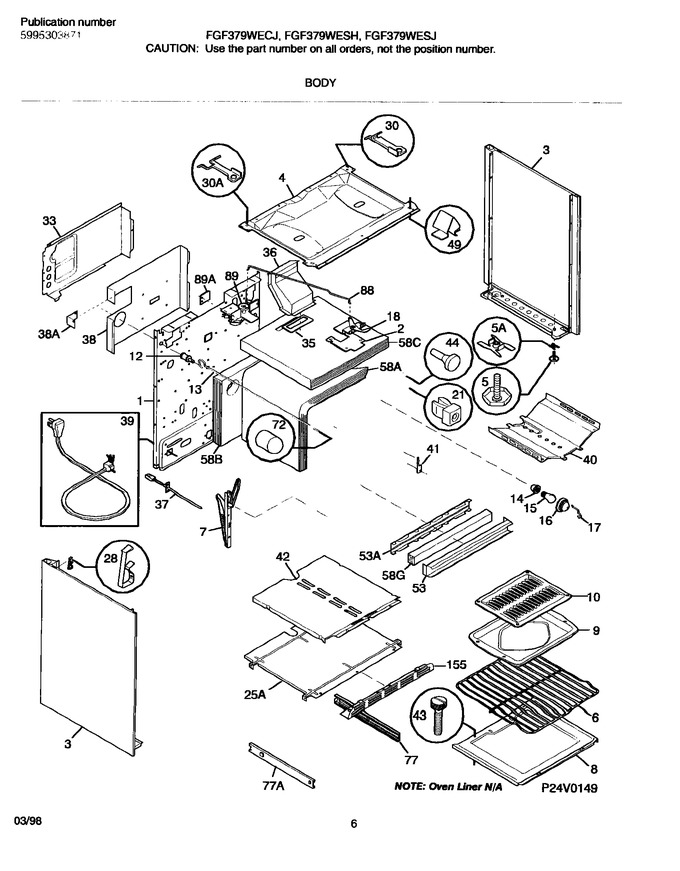

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316088100		Shield-heat,body Side		Appelez-nous	-
3	316081029		Panel-bodyside,white ,lh		Appelez-nous	-
3	316081028		Panel-bodyside, White, Rh		Appelez-nous	-
3	08067992		Shield-insulation		Appelez-nous	-
4	316011914		Burner Box		Appelez-nous	-
5	5303288460		Nut,t-type,leveling Screw				$ 27.14
5	5303203397		Screw-leveling				$ 14.49
5	3934058		Anti-tip Kit				$ 98.75
5	316116000		Screw,anti-tip ,(4)   (Replaces: 316078600)				$ 12.89
6	5304531722		Rack,oven   (Replaces: 316083800)			Immediately	$ 51.05
7	3203010		Clip, Hinge, (4)   (Replaces: 5303012323)				$ 14.89
7	316007005		Hinge-oven Door, (2)		Appelez-nous	-
8	5303212540		Panel-oven Bottom		Appelez-nous	-
8	316064600		Support,oven Bottom				$ 18.95
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	3014099		Spacer-bodyside, (8)				$ 3.62
30	316059200		Bracket-main Top, Rh		Appelez-nous	-
33	316014401		Shield-wall Rear		Appelez-nous	-
35	08067965		Gasket-flue		Appelez-nous	-
36	5303272844		Flue		Appelez-nous	-
38	316051700		Shield-heat		Appelez-nous	-
39	08067961		Fastener-power Cord		Appelez-nous	-
39	5304534000		Cord,electric Power   (Replaces: 3131425)			Immediately	$ 33.37
40	3200836		Shield-heat Baffle		Appelez-nous	-
40	5303288570		Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
53	5303288579		Shield,main Front		Appelez-nous	-
53	08067973		Insulation, Main Front				$ 51.74
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
155	316095201		Shield-drawer, Front Warmer		Appelez-nous	-
25A	316092300		Shield-warmer, Upper		Appelez-nous	-
30A	316059201		Bracket-main Top, Lh		Appelez-nous	-
38A	316097100		Insulator, Shield		Appelez-nous	-
58A	316047705		Insulation, Oven Wrapper		Appelez-nous	-
58B	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
58C	3131304		Insulation, Oven Top		Appelez-nous	-
F12	316027701		Switch-oven Light		Appelez-nous	-
F18	316036300		Latch-door		Appelez-nous	-
F37	5304497424		Probe-oven Temp   (Replaces: 3204593)			Immediately	$ 38.32
F89	316028103		Motor-latch/lock		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
NI	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
