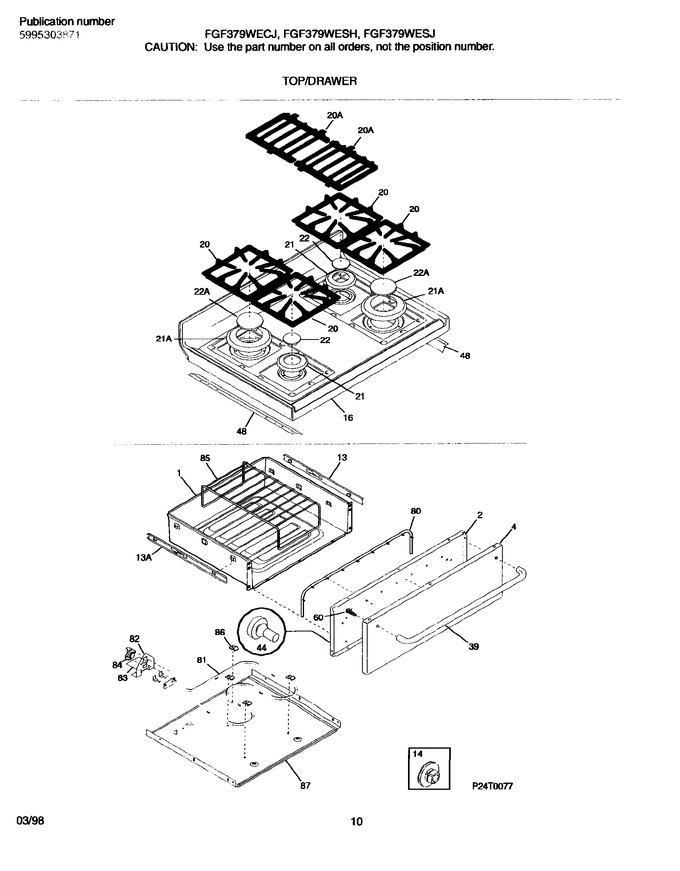

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316079401		Panel-drawer, Stainless		Appelez-nous	-
13	316105600		Glide-drawer,rear,rh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307709		Main Top, White		Appelez-nous	-
20	316084502		Grate, (4)		Appelez-nous	-
21	316011308		Trim Ring, Gray , Small		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
80	316093000		Seal-door, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091902		Base-warmer		Appelez-nous	-
13A	318259507		Glide-drawer, Inner, Lh   (Replaces: 316105601)			Immediately	$ 69.01
20A	316086403		Grate, Center, (2)		Appelez-nous	-
21A	316011307		Trim-ring, Gray , Large		Appelez-nous	-
F22	316011003		Cap-burner, Gray, Small, (2)		Appelez-nous	-
F22A	316011009		Cap-burner, Gray, Large, (1)		Appelez-nous	-
F81	316093100		Element, Warmer Drawer		Appelez-nous	-
NI	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
NI	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
NI	316105501		Glide-warmer,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
NI	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
