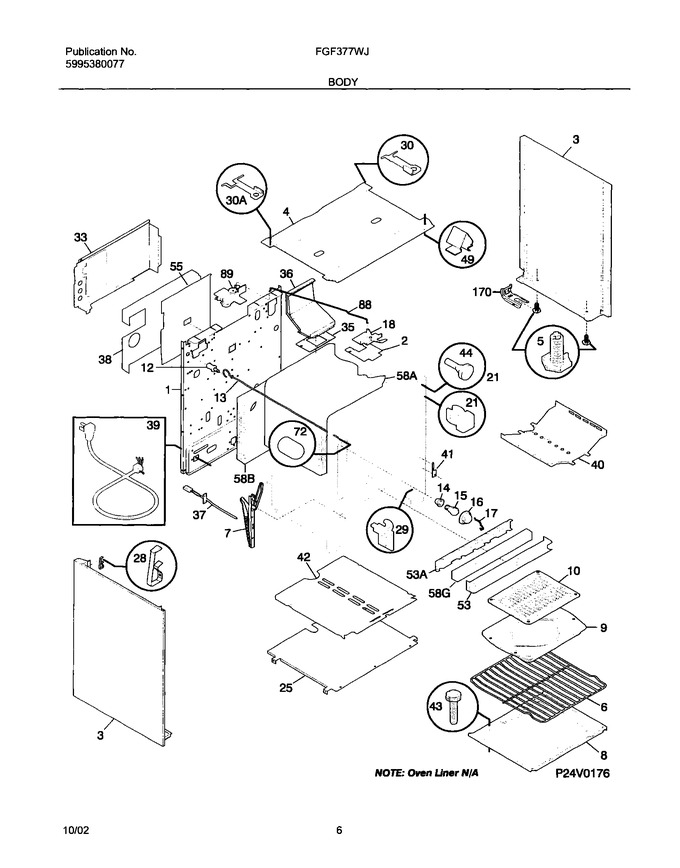

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029416		Panel,main Back		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316081038		Panel-bodyside, Black, Rh		Appelez-nous	-
3	316081039		Panel-bodyside, Black, Lh		Appelez-nous	-
4	316011917		Burner Box,with Hole		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	5304531722		Rack,oven   (Replaces: 316083800)			Immediately	$ 51.05
7	316007005		Hinge-oven Door, (2)		Appelez-nous	-
8	5303300701		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316026800		Rod-light Switch				$ 36.86
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	3014099		Spacer,bodyside				$ 3.62
25	5303288580		Shield-heat, Lower		Appelez-nous	-
28	3011813		Clip,wire ,bodyside				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	316059200		Bracket-main Top, Rh		Appelez-nous	-
33	5303288495		Shield,rear Wall		Appelez-nous	-
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	316133002		Flue		Appelez-nous	-
38	316051700		Shield-heat		Appelez-nous	-
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
53	5303288579		Shield,main Front		Appelez-nous	-
55	316107800		Shield,flue		Appelez-nous	-
72	5303285692		Cover-rod End,lt Switch Rod		Appelez-nous	-
88	316026400		Rod,auto Latch				$ 21.79
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
170	316112500		Template,anti-tip				$ 3.55
30A	316059201		Bracket-main Top, Lh		Appelez-nous	-
53A	08067992		Shield,insulation ,front Frame		Appelez-nous	-
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
58G	08067973		Insulation, Main Front				$ 51.74
F12	316027701		Switch-oven Light		Appelez-nous	-
F14	316116400		Receptacle,oven Light			Immediately	$ 56.10
F18	316036300		Latch-door		Appelez-nous	-
F37	5304497424		Probe-oven Temp   (Replaces: 316111202)			Immediately	$ 38.32
F39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
F89	316028101		Motor,latch		Appelez-nous	-
NI	316001632		Wiring Harness,chassis		Appelez-nous	-
NI	08067757		Cover Plate,burner Box		Appelez-nous	-
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303288570		Screw,hd Shldr Sqdr `8-18 X 1/2 ,heat Shield		Appelez-nous	-
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316064600		Support,oven Bottom				$ 18.95
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
