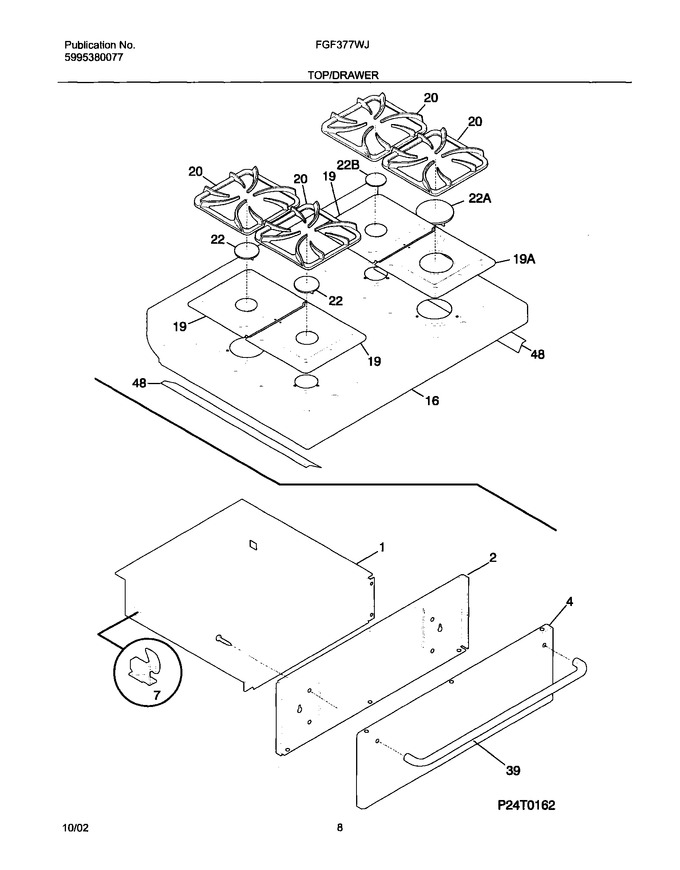

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer		Appelez-nous	-
2	5303288582		Liner,drawer ,galv Steel ,front Panel		Appelez-nous	-
4	316079401		Panel-drawer, Stainless		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316114803		Maintop,black		Appelez-nous	-
19	316011401		Pan-burner,small ,black				$ 20.58
20	316084503		Grate, Black, (4)		Appelez-nous	-
22	316122100		Cap-burner,small ,black ,(4)		Appelez-nous	-
39	316091117		Handle-door, Black, Oven		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield,deflector ,main Top Panel ,(2)		Appelez-nous	-
19A	316011419		Pan-burner,large ,black				$ 102.90
22A	316098505		Cap-burner,black ,large				$ 56.28
F22B	316118800		Cap-simmer Burner,gloss Black				$ 12.18
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316133600		Spacer-handle,black ,20 ,(2)		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
