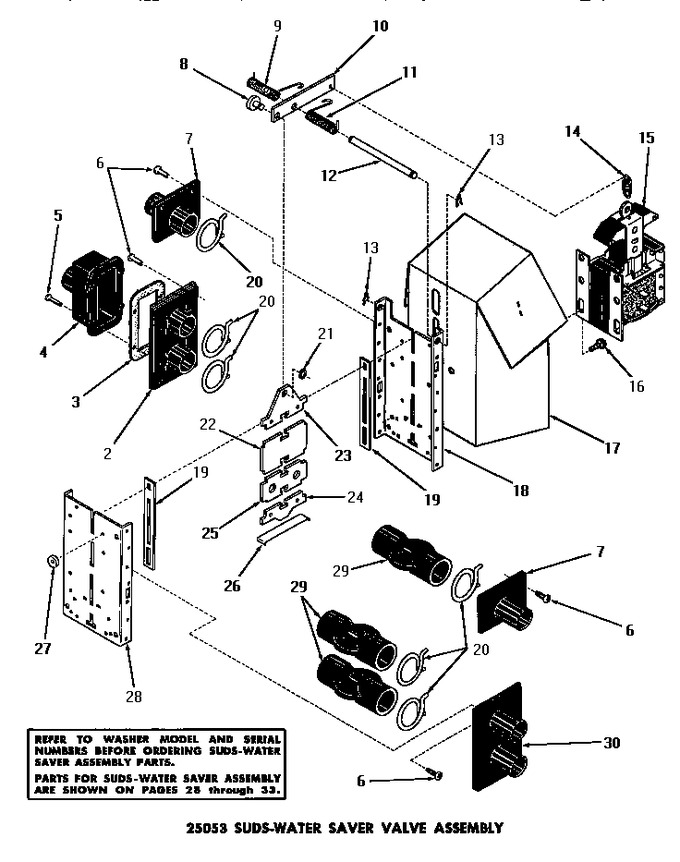

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25053		Suds-water Saver Valve Assembl				$ 18.69
2	21296X		Double Tube Hose Adapter		Appelez-nous	-
3	21296-I		Gasket		Appelez-nous	-
4	22007A		Manifold Cover		Appelez-nous	-
5	22007B		Phillips Head Screw		Appelez-nous	-
6	21296J		Phillips Head Screw		Appelez-nous	-
7	22007G		Single Tube Hose Adapter		Appelez-nous	-
8	24292C		Actuating Pin		Appelez-nous	-
9	24292E		Torsion Spring, Left		Appelez-nous	-
10	24292B		Actuating Lever		Appelez-nous	-
11	24292F		Torsion Spring, Right		Appelez-nous	-
12	24292G		Pivot Pin		Appelez-nous	-
13	21296R		Hair Pin Clip		Appelez-nous	-
14	22155G		Spring		Appelez-nous	-
15	24292A		Solenoid		Appelez-nous	-
16	24292J		Hex Head Screw		Appelez-nous	-
17	25052		Shield				$ 17.69
18	24292D		Side Plate		Appelez-nous	-
19	21296M		Guide Yoke		Appelez-nous	-
20	21296W		Hose Clamp		Appelez-nous	-
21	24292K		Retainer Ring		Appelez-nous	-
22	21296AA		Stationary Post		Appelez-nous	-
23	24292H		End Post		Appelez-nous	-
24	21296N		End Post		Appelez-nous	-
25	21296Z		Intermediate Post		Appelez-nous	-
26	21296K		Leaf Spring		Appelez-nous	-
27	23848D		Spacer		Appelez-nous	-
28	23848C		Side Plate		Appelez-nous	-
29	21296Y		Tube		Appelez-nous	-
30	22155A		Double Tube Hose Adapter		Appelez-nous	-
