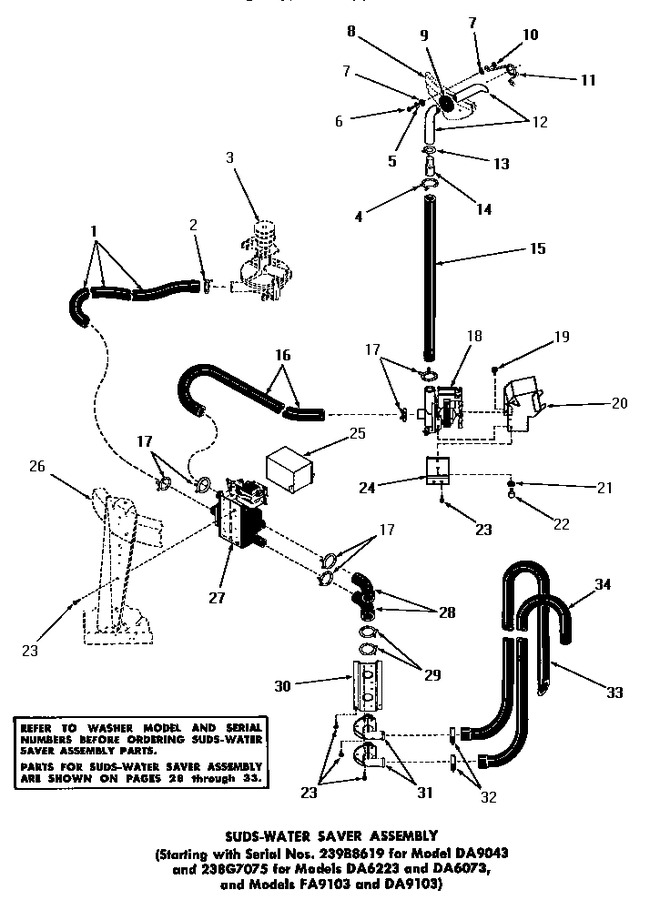

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	24575		No Longer Available		Appelez-nous	-
2	20210		No Longer Available		Appelez-nous	-
3	Y00000000		See Note Pump Assembly		Appelez-nous	-
4	Y03698		Clamp Xreplace		Appelez-nous	-
5	20492		Washer		Appelez-nous	-
6	21081		Screw,10-24 X 1/2 Rd H				$ 33.49
7	02928		Washer		Appelez-nous	-
8	Y00000000		See Note Drain Tub		Appelez-nous	-
9	20118		Grommet,1982 Inv		Appelez-nous	-
10	21080		Nut		Appelez-nous	-
11	22355		Return Hose Support		Appelez-nous	-
12	22356		Suds-water Return Hose		Appelez-nous	-
13	Y22671		Hose Clamp		Appelez-nous	-
14	21086		Code J		Appelez-nous	-
15	25782		Pump Outlet Return Hose		Appelez-nous	-
16	DE81-05796A		Valve-to-pump Hose   (Replaces: 26052)				$ 48.91
17	21372		Hose Clamp		Appelez-nous	-
18	Y10530		Motor And Pump Assembly		Appelez-nous	-
19	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
20	25839		Shield		Appelez-nous	-
21	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
22	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
23	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
24	25779		Mounting Bracket		Appelez-nous	-
25	26053		Shield		Appelez-nous	-
26	Y00000000		See Note Chassis		Appelez-nous	-
27	23848		Valve		Appelez-nous	-
28	23845		Tee-to-elbow Hose		Appelez-nous	-
29	Y03698		Clamp Xreplace		Appelez-nous	-
30	23560		Bracket		Appelez-nous	-
31	23553		Elbow,drain Hose-plast				$ 11.23
32	WP285655		Clamp, Hose   (Replaces: 20211)			Immediately	$ 7.55
33	22627		Hose		Appelez-nous	-
34	20240		Hose,m/f 29219		Appelez-nous	-
