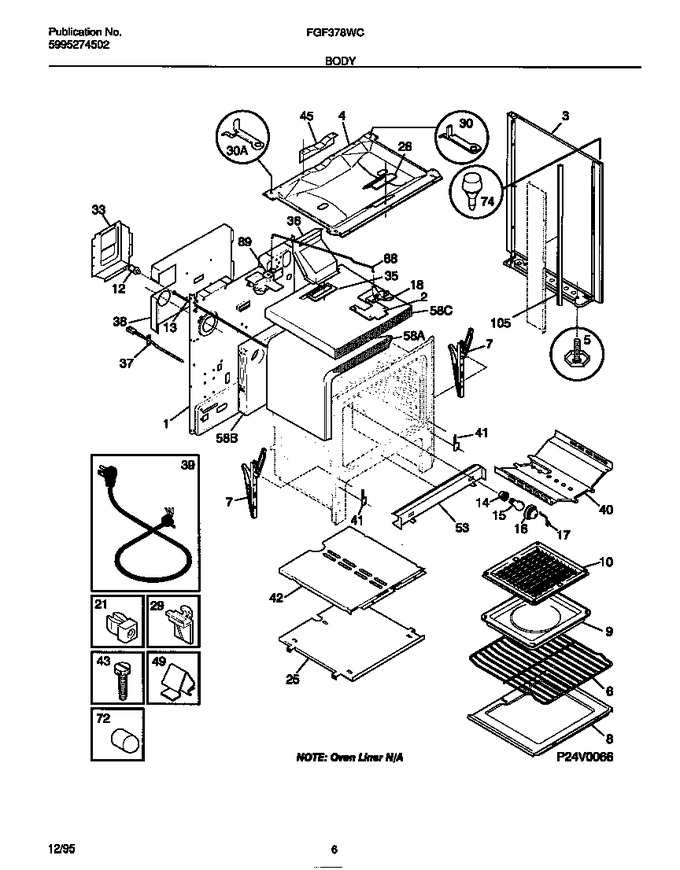

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316029410 | Back-main |
|
- | |||||
| 2 | 3131314 | Shield-oven-top |
|
- | |||||
| 3 | 08067992 | Shield, Insulation, Galv Steel (not Illustrated) |
|
- | |||||
| 3 | 316081002 | Panel-bodyside, Black, Rh |
|
- | |||||
| 3 | 316081003 | Panel-bodyside, Black, Lh (not Illustrated) |
|
- | |||||
| 4 | 316011912 | Burner Box, Black |
|
- | |||||
| 5 | 316116000 | Screw, Anti, Tip, (4) (not-illustrated) (Replaces: 316078600) |
|
$ 12.89 | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5 | 5303288460 | Nut, T,type, Leveling Screw (not Illustrated) |
|
$ 27.14 | |||||
| 5 | 3934058 | Anti, Tip Kit (not-illustrated) |
|
$ 98.75 | |||||
| 6 | 5304531722 | Rack,oven (Replaces: 316083800) |
|
Immediately | $ 51.05 | ||||
| 7 | 316007004 | Hinge-oven Door, (2) |
|
- | |||||
| 7 | 3203010 | Clip, Hinge, (4) (not Illustrated) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 8 | 316064600 | Support, Oven Bottom (not-illustrated) |
|
$ 18.95 | |||||
| 8 | 5303212540 | Panel-oven Bottom |
|
- | |||||
| 9 | 316073800 | Pan-broiler |
|
- | |||||
| 10 | 3205234 | Insert, Broiler Pan |
|
- | |||||
| 12 | 316027701 | Switch-oven Light, Door Frame |
|
- | |||||
| 13 | 316026800 | Rod-light Switch/door |
|
$ 36.86 | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 316087500 | Retainer,lens |
|
$ 56.70 | |||||
| 18 | 316036300 | Latch-door |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 25 | 3131313 | Shield-heat-lower |
|
- | |||||
| 26 | 08067757 | Cover Plate |
|
- | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 30 | 5303283575 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 30 | 5303283574 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 33 | 316014401 | Shield, Rear Wall |
|
- | |||||
| 35 | 08067965 | Gasket-flue |
|
- | |||||
| 36 | 5303272844 | Flue |
|
- | |||||
| 37 | 5304497424 | Probe-oven Temp (Replaces: 3204593) |
|
Immediately | $ 38.32 | ||||
| 38 | 316051701 | Shield-heat |
|
- | |||||
| 39 | 5304534377 | Cord-electric Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| 39 | 08067961 | Fastener-power Cord |
|
- | |||||
| 40 | 5303288570 | Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2 (not Illustrated) |
|
- | |||||
| 40 | 3200836 | Shield-heat Baffle |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 42 | 5303270104 | Shield-bake-burner |
|
- | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1-7/16 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 45 | 08068018 | Shield-wire |
|
- | |||||
| 49 | 3205821 | Clip-spring Mtg (Replaces: 3051124) |
|
Immediately | $ 35.44 | ||||
| 53 | 08067973 | Insulation, Main Front (not Illustrated) |
|
$ 51.74 | |||||
| 53 | 5303271047 | Shield-main Front |
|
- | |||||
| 58 | 316047705 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 3131304 | Insulation, Oven Top |
|
- | |||||
| 58 | 316054200 | Insulation, Oven Back |
|
- | |||||
| 72 | 5303285692 | Cover-light/switch Rod |
|
- | |||||
| 74 | 5308003107 | Spacer-cooktop |
|
- | |||||
| 88 | 316026400 | Rod-latch, Auto |
|
$ 21.79 | |||||
| 89 | 316028101 | Motor-latch/lock |
|
- | |||||
| 105 | 316071900 | Gasket-edge |
|
- | |||||
| *90842 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *90843 | 316001629 | Harness-wiring, Main |
|
- |
