SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

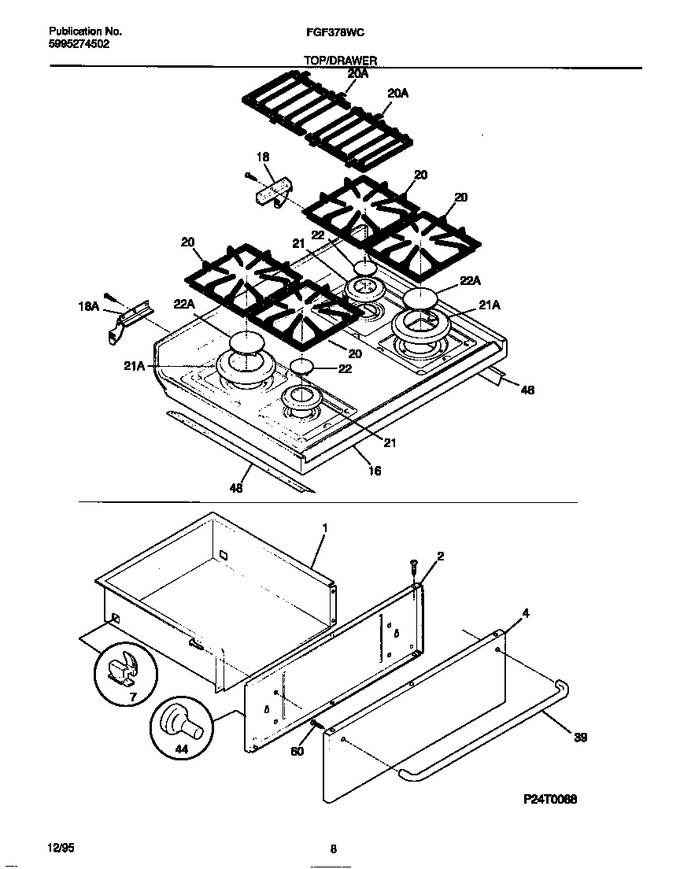

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316079400		Panel-drawer, Stainless		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
16	5303307708		Main Top, Black		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
20	316084600		Grate, Center, (2)		Appelez-nous	-
20	316084500		Grate, (4)		Appelez-nous	-
21	316011304		Trim-ring-burner, Black, Large				$ 97.23
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316011015		Cap-burner, Matte Black, (2), Large		Appelez-nous	-
22	316011014		Cap-burner, Matte Black, (3), Small		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	3131903		Bumper				$ 55.36
48	316077400		Shield-maintop, (2)		Appelez-nous	-
48	316077501		Shield-maintop, (2)		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*90844	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*90845	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*90846	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*90847	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
