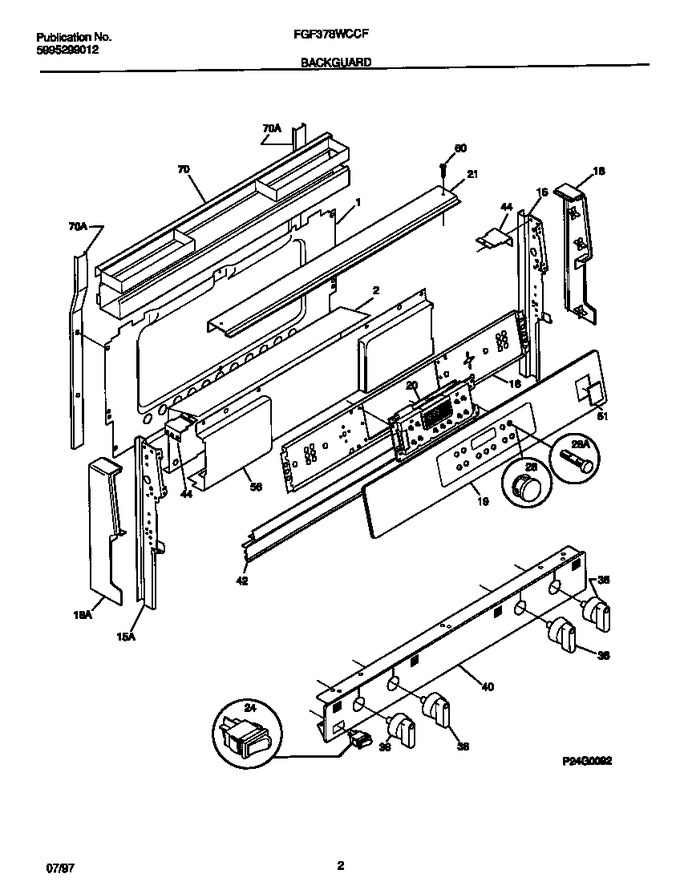

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038800		Shield-backguard, Inner		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
16	316042605		Plate, Instrument Mtg, Black		Appelez-nous	-
18	316021801		End Cap, Black, Lh				$ 94.29
18	316021800		End Cap, Black, Rh				$ 81.32
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
19	316028348		Panel-control, Glass		Appelez-nous	-
20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
21	316039201		Trim-canopy/shield		Appelez-nous	-
24	316083101		Switch-rocker, Black, Rh, (1)				$ 85.01
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
28	316080600		Shaft-push Button, Clock/timer/eoc, Black				$ 49.41
36	316085000		Knob-top Valve, (4)				$ 77.18
40	316062365		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316074201		Nameplate, Gallery		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
70	5303500001		Support, Spice Rack		Appelez-nous	-
70	316069700		Rack-spice, Stainless		Appelez-nous	-
*93520	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*93521	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*93522	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*93523	316001435		Harness-wiring, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
