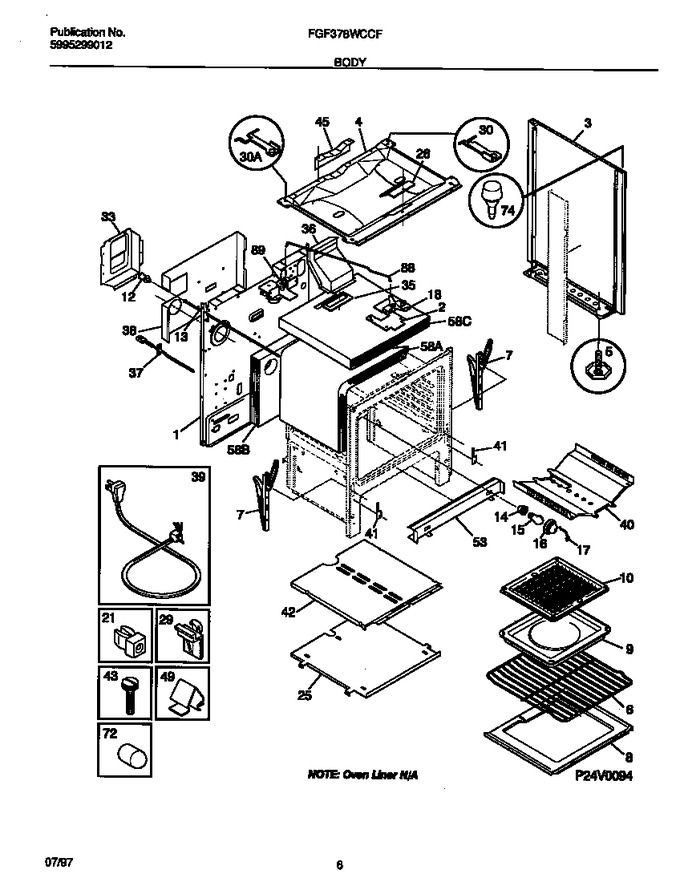

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	5308003107		Spacer-cooktop (not Illustrated)		Appelez-nous	-
3	08067992		Shield, Insulation, Galv Steel (not Illustrated)		Appelez-nous	-
3	316081027		Panel-bodyside, Black, Lh (not Illustrated)		Appelez-nous	-
3	316081026		Panel-bodyside, Black, Rh		Appelez-nous	-
4	316011912		Burner Box, Black		Appelez-nous	-
5	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14
5	5303203397		Screw-leveling				$ 14.49
5	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
6	5304531722		Rack,oven   (Replaces: 316083800)			Immediately	$ 51.05
7	316007005		Hinge-oven Door, (2)		Appelez-nous	-
7	3203010		Clip, Hinge, (4) (not Illustrated)   (Replaces: 5303012323)				$ 14.89
8	316064600		Support, Oven Bottom (not-illustrated)				$ 18.95
8	5303212540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
12	316027701		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	5303288580		Shield-heat, Lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	316059200		Bracket-main Top, Rh		Appelez-nous	-
30	316059201		Bracket-main Top, Lh		Appelez-nous	-
33	316014401		Shield, Rear Wall		Appelez-nous	-
35	08067965		Gasket-flue		Appelez-nous	-
36	5303272844		Flue		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 3204593)			Immediately	$ 38.32
38	316051700		Shield-heat		Appelez-nous	-
39	08067961		Fastener-power Cord		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
40	5303288570		Screw-heat Shield, Hd Shldr Sqdr, 8-18 X 1/2 (not Illustrated)		Appelez-nous	-
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
45	08068018		Shield-wire		Appelez-nous	-
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
53	08067973		Insulation, Main Front (not Illustrated)				$ 51.74
53	5303288579		Shield,main Front		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
58	316047705		Insulation, Oven Wrapper		Appelez-nous	-
58	316054200		Insulation, Oven Back		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028101		Motor-latch/lock		Appelez-nous	-
*93524	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*93525	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*93526	316001629		Harness-wiring, Main		Appelez-nous	-
