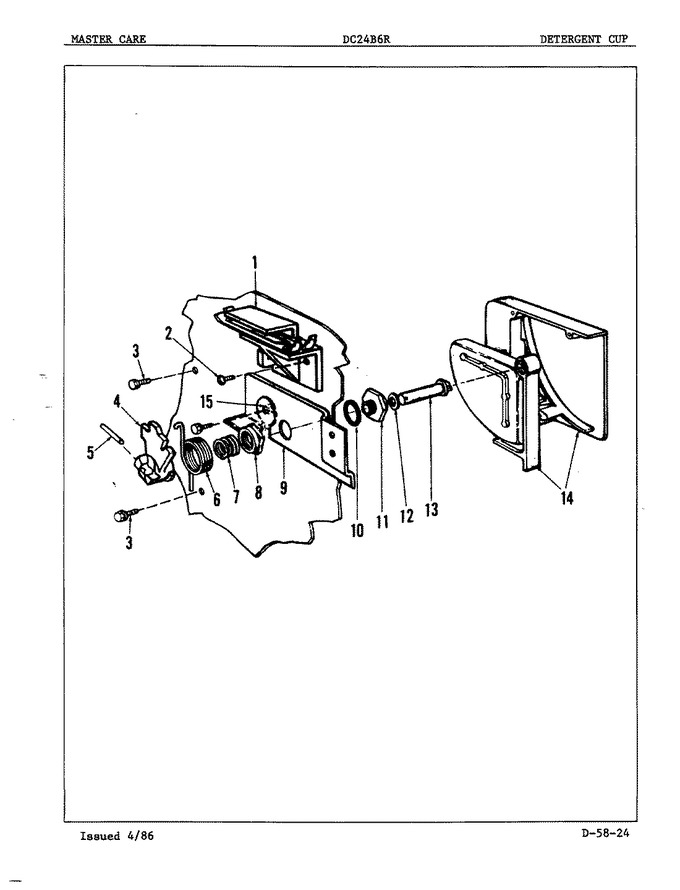

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806564 | Trigger |
|
- | |||||
| 2 | WPW10068250 | Screw (Replaces: 807421) |
|
$ 3.66 | |||||
| 3 | 808209 | Screw |
|
- | |||||
| 4 | 804734 | Rollpin |
|
- | |||||
| 5 | 154180301 | Cam (Replaces: 806566) |
|
$ 32.84 | |||||
| 6 | 805227 | Spring |
|
- | |||||
| 7 | 806567 | Spring |
|
- | |||||
| 8 | 806568 | Nut |
|
- | |||||
| 9 | 806569 | Bracket |
|
- | |||||
| 10 | 802836 | Gasket |
|
- | |||||
| 11 | 805626 | Bushing |
|
- | |||||
| 12 | 806647 | O Ring |
|
- | |||||
| 13 | 806648 | Shaft |
|
- | |||||
| 14 | 807261 | Detrg Cup Kit |
|
- | |||||
| 15 | 808210 | O Ring |
|
$ 0.42 | |||||
| 15 | 806674 | Shaft Kit |
|
- |
