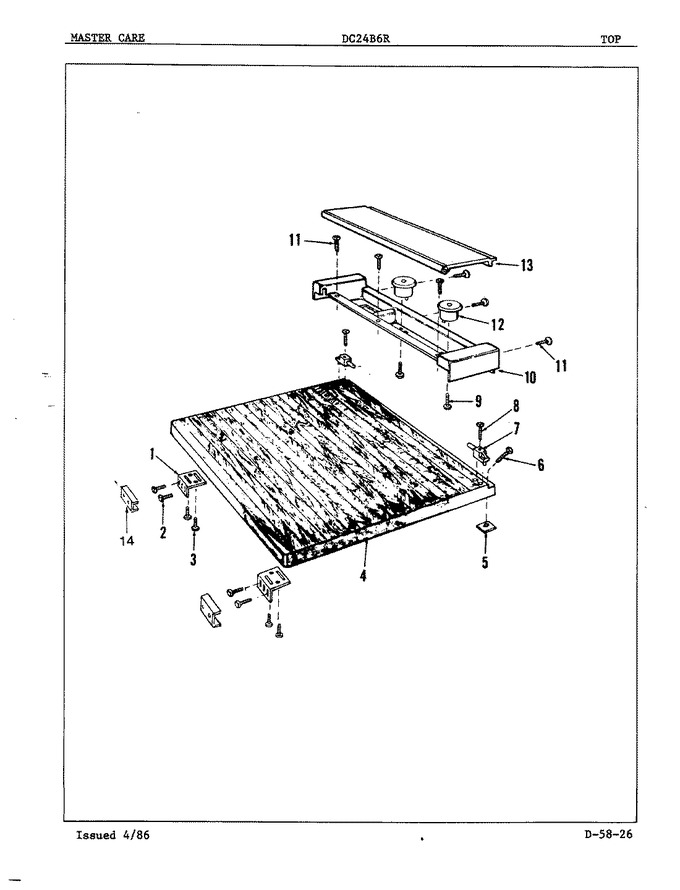

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Basket
02 - Control Panel
03 - Detergent Cup
04 - Door & Access Panel
05 - Frame
06 - Inner Tub
07 - Pump & Motor
08 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 805069 | Clip |
|
- | |||||
| 2 | 807036 | Screw |
|
- | |||||
| 3 | 807270 | Screw |
|
- | |||||
| 4 | 808191 | Top |
|
- | |||||
| 5 | 807819 | Clamp |
|
- | |||||
| 6 | 807817 | Screw |
|
- | |||||
| 7 | 808193 | Hinge |
|
- | |||||
| 8 | 806382 | Screw |
|
- | |||||
| 9 | 807268 | Screw |
|
- | |||||
| 10 | 808192 | Lid Base |
|
- | |||||
| 11 | 807501 | Screw |
|
- | |||||
| 12 | 808195 | Post |
|
- | |||||
| 13 | 808194 | Lid |
|
- | |||||
| 14 | 808743 | Cover, Top Clip |
|
- |
