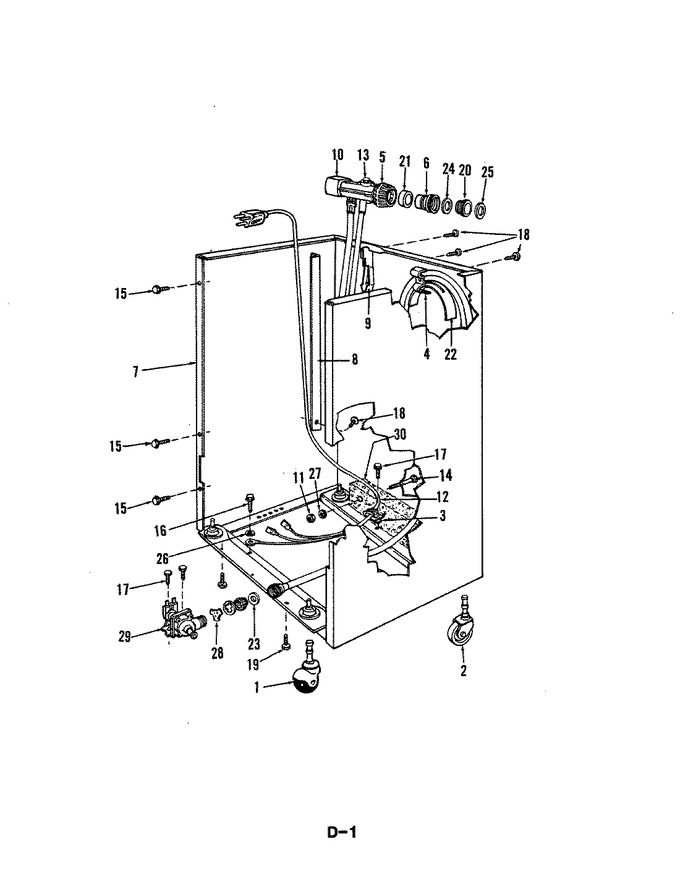

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808542		Front Caster		Appelez-nous	-
1	808944		Caster		Appelez-nous	-
2	808543		Rear Caster		Appelez-nous	-
2	807000		Caster Kit		Appelez-nous	-
3	804426		Clamp		Appelez-nous	-
4	806142		Hose Clamp		Appelez-nous	-
5	WP285170		Collar Kit   (Replaces: 807499)			Immediately	$ 64.29
6	WPW10254672		Aerator   (Replaces: 803149)			Immediately	$ 49.54
7	808537		Frame Asm Am		Appelez-nous	-
8	COMM PART		Hose Guard   (Replaces: 808120)		Appelez-nous	-
9	805859		Hose Guide		Appelez-nous	-
10	DWD8C		Hose Asm   (Replaces: 807496)		Appelez-nous	-
11	808661		Nut		Appelez-nous	-
12	805046		Power Cord		Appelez-nous	-
13	807498		Relief Kit		Appelez-nous	-
14	808612		Screw		Appelez-nous	-
15	806539		Screw		Appelez-nous	-
16	807951		Screw		Appelez-nous	-
17	807950		Screw		Appelez-nous	-
18	807501		Screw		Appelez-nous	-
19	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
20	800782		Adaptor		Appelez-nous	-
21	WP910218		U Packing   (Replaces: 806584)			Immediately	$ 9.05
22	806143		Hose Support		Appelez-nous	-
23	800787		Hose Washer		Appelez-nous	-
24	803392		Washer		Appelez-nous	-
25	803393		Washer		Appelez-nous	-
26	807373		Washer		Appelez-nous	-
27	808613		Washer		Appelez-nous	-
28	808432		Flow Washer		Appelez-nous	-
29	808667		Inlet Valve Kit		Appelez-nous	-
30	808615		Weight		Appelez-nous	-
