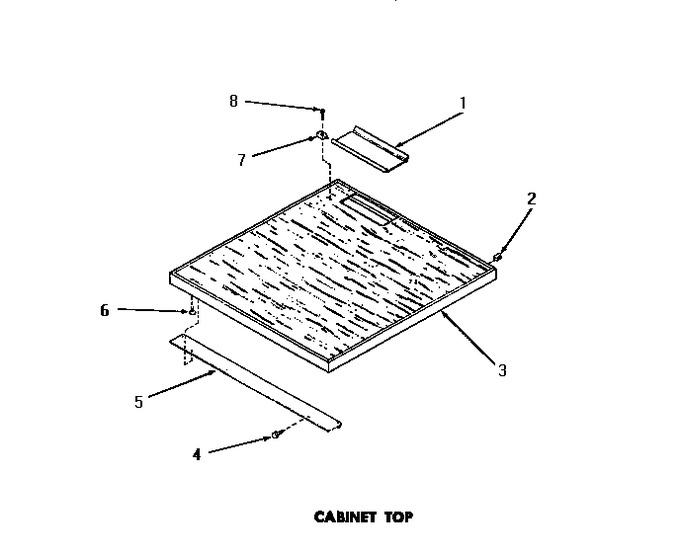

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110150		Access Cover		Appelez-nous	-
2	M110149		Clip		Appelez-nous	-
3	M110148		Cabinet Top		Appelez-nous	-
4	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
5	M110152		Top Hold-down Bracket		Appelez-nous	-
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	M110151		Hinge Xreplace		Appelez-nous	-
8	Y0055108		Button, Push, Start		Appelez-nous	-
	NOTE:		Tub Inc 20376 Nut(2), 81108 O-ring(4), 81120 Screw(2), 90690 Washer(2), 91163 Screw(2), M110015 Gskt, M110016 Gskt, M110045 Gskt, M110059 Gskt Clip(2), M11014		Appelez-nous	-
