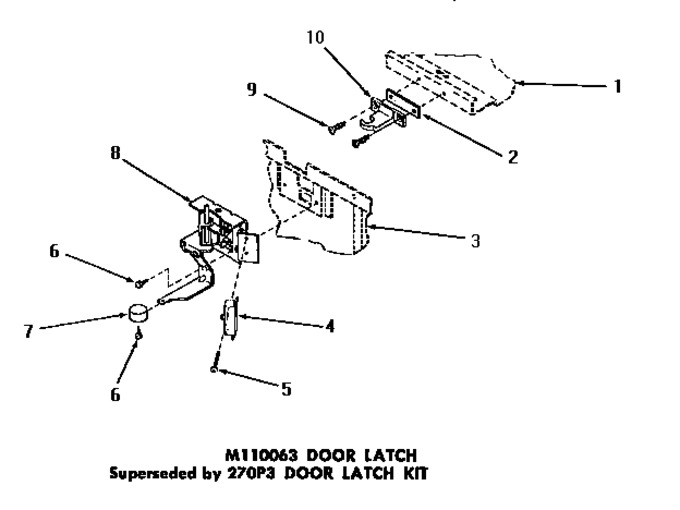

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Tub		Appelez-nous	-
2	M110061		Shim Xreplace		Appelez-nous	-
3	Y00000000		See Note Door Panel, Inner		Appelez-nous	-
4	M110065		Kit,door Latch Xreplace		Appelez-nous	-
5	10398		Screw			Immediately	$ 33.34
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	M110064		Knob Xreplace		Appelez-nous	-
8	M110063		Kit,door Latch Xreplace		Appelez-nous	-
9	91163		Phillips Head Screw		Appelez-nous	-
10	M110062		Strike,latch Xreplace		Appelez-nous	-
