SELECT A DIAGRAM

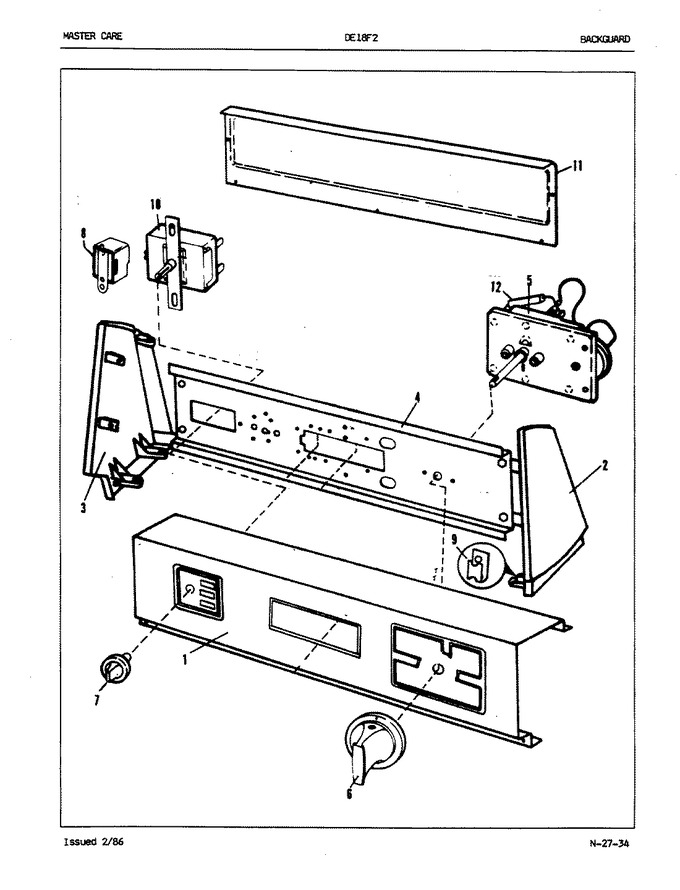

01 - Control Panel (rev. J)
02 - Cylinder & Drive (rev. J)
03 - Exterior (rev. J)
04 - Heater (rev. J)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-0824 | Control Panel | J |
|
- | ||||
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | J |
|
- | ||||
| 1 | 25-7793 | Screw | J |
|
- | ||||
| 1 | 53-1015 | Control Panel | J |
|
- | ||||
| 2 | 53-0265 | Lh Endcap | J |
|
- | ||||
| 3 | 25-7760 | Screw | J |
|
- | ||||
| 3 | 53-0280 | Trim, End Cap (lt) | J |
|
- | ||||
| 3 | 53-0279 | Trim, End Cap (rt) | J |
|
- | ||||
| 3 | 53-0264 | Rh Endcap | J |
|
- | ||||
| 4 | 53-0365 | Control Shield | J |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 25-3092) | J |
|
Immediately | $ 7.04 | |||
| 4 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | J |
|
- | ||||
| 5 | 53-0379 | Timer | J |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note | J |
|
- | ||||
| 5 | WP489483 | Screw (Replaces: 25-0088) | J |
|
$ 9.78 | ||||
| 6 | 53-0472 | Timer Knob | J |
|
- | ||||
| 6 | 25-6044 | Set Screw | J |
|
- | ||||
| 7 | 35-0316 | Selector Knob | J |
|
- | ||||
| 8 | 63-6731 | Buzzer | J |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) | J |
|
Immediately | $ 7.04 | |||
| 9 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | J |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: 25-3092) | J |
|
Immediately | $ 7.04 | |||
| 10 | 53-0456 | Switch, Selector (heat) | J |
|
- | ||||
| 11 | 25-7851 | Speedclip, End Cap To Top | J |
|
- | ||||
| 11 | 25-7852 | Speedclip, Rr Shld To End Cap | J |
|
- | ||||
| 11 | 53-0268 | Rear Shield | J |
|
- | ||||
| 11 | 34-9487 | Plate, Reinforcement | J |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: 25-3092) | J |
|
Immediately | $ 7.04 | |||
| 11 | 25-7697 | Screw | J |
|
- |
