Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3400074 Screw   (Replaces: 25-7863) J Special Order $ 6.47

1 LA-1044 Heater Element   (Replaces: 53-0919) J In-Stock Immediately $ 51.91

2 25-7819 Screw No.8-18x1/2 Pan Hd J Appelez-nous -
2 53-1232 Heater Housing Assembly J Appelez-nous -
2 53-0191 Htr Housing Asm J Appelez-nous -
3 WP53-0771 Hi Lmt Tstat   (Replaces: 53-0306) J Special Order $ 110.87

3 25-3083 Screw J Appelez-nous -
4 53-0285 Bracket, Thermostat J Appelez-nous -
4 53-1181 Bracket, Thermal Fuse J Appelez-nous -
4 WP90767 Screw   (Replaces: 25-7741) J In-Stock Immediately $ 7.04

5 WP112432 Nut (no.10-32)   (Replaces: 25-0027) J Special Order $ 7.16

5 WP3400074 Screw   (Replaces: 25-7803) J Special Order $ 6.47

5 25-6124 Nut J Appelez-nous -
5 25-3123 Washer, Cup J Appelez-nous -
5 25-3122 Washer, Flat J Appelez-nous -
5 53-0166 Terminal Block J Appelez-nous -
6 WP53-1182 Fuse, Thermal   (Replaces: 53-1182) J Special Order $ 55.53


    View Diagram in Separate Window     Print Icon   Print Part List

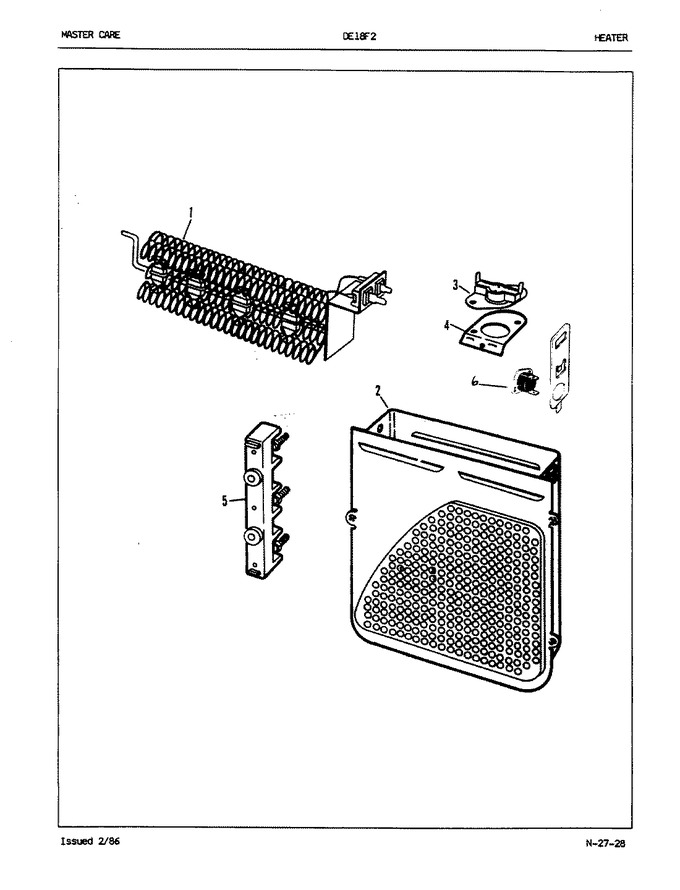

Diagram for DE18F2WW
