Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 WP62739 Nut   (Replaces: Y052740) 00 Special Order $ 6.85

002 204439 Screw & Fstner Assy(frt.panel) 00 Special Order $ 8.80

003 WP210684 Foot, Rubber   (Replaces: 210684) 00 In-Stock Immediately $ 14.09

004 WP90767 Screw   (Replaces: 211294) 00 In-Stock Immediately $ 7.04

005 211881 Grommet, Cord 00 Appelez-nous -
006 213007 Screw, Cabinet 00 Special Order $ 10.99

007 301548 Clamp, Ground (w/screw) 00 Appelez-nous -
008 NLA Screw & Washer Assy. 00 Appelez-nous -
009 NLA Spacer Assembly 00 Appelez-nous -
010 NLA Front Panel - De Models 00 Appelez-nous -
011 WP8563585 Adjustable Leg And Nut   (Replaces: Y305087) 00 In-Stock Immediately $ 13.28

012 Y305190 Top Cover-white 00 Appelez-nous -
013 NLA Cabinet-white 00 Appelez-nous -
014 Y310632 Screw 00 Appelez-nous -
015 310933 Fastener 00 Appelez-nous -
016 311155 Ground Wire 00 Special Order $ 8.77

017 Y311270 Washer, Terminal Block 00 Special Order $ 8.75

018 WP489483 Screw, No.10-32 X 1/2 Inch   (Replaces: Y311423) 00 Special Order $ 9.78

019 WP112432 Nut, Terminal Block   (Replaces: 311484) 00 Special Order $ 7.16

020 Y312184 Strap, Ground 00 Appelez-nous -
021 W11164114 Screw, No.10-24 X 3/4 Inch-----o   (Replaces: Y312209) 00 Special Order $ 3.76

022 Y312904 Bracket, Terminal Block 00 Appelez-nous -
023 Y312905 Cover, Terminal 00 Appelez-nous -
024 Y312951 Cover, Access 00 Appelez-nous -
025 313122 Screw - Baffle To Tumbler 00 Appelez-nous -
026 NLA Filler Strip 00 Appelez-nous -
027 WP90767 Screw   (Replaces: Y313559) 00 In-Stock Immediately $ 7.04

028 Y313561 Screw----na 00 Special Order $ 5.27

029 NLA Top Cover Plate 00 Appelez-nous -
030 400008 Block, Terminal 00 Special Order $ 29.20

031 NLA Screw 00 Appelez-nous -
032 WP4312464 Screw   (Replaces: 911050) 00 Special Order $ 6.26


    View Diagram in Separate Window     Print Icon   Print Part List

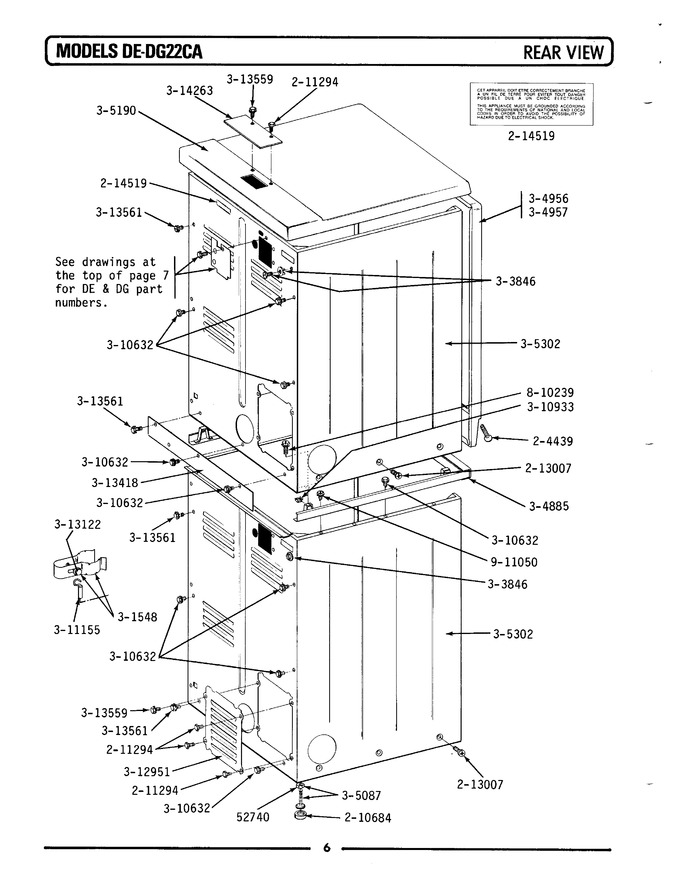

Diagram for DE22CA
