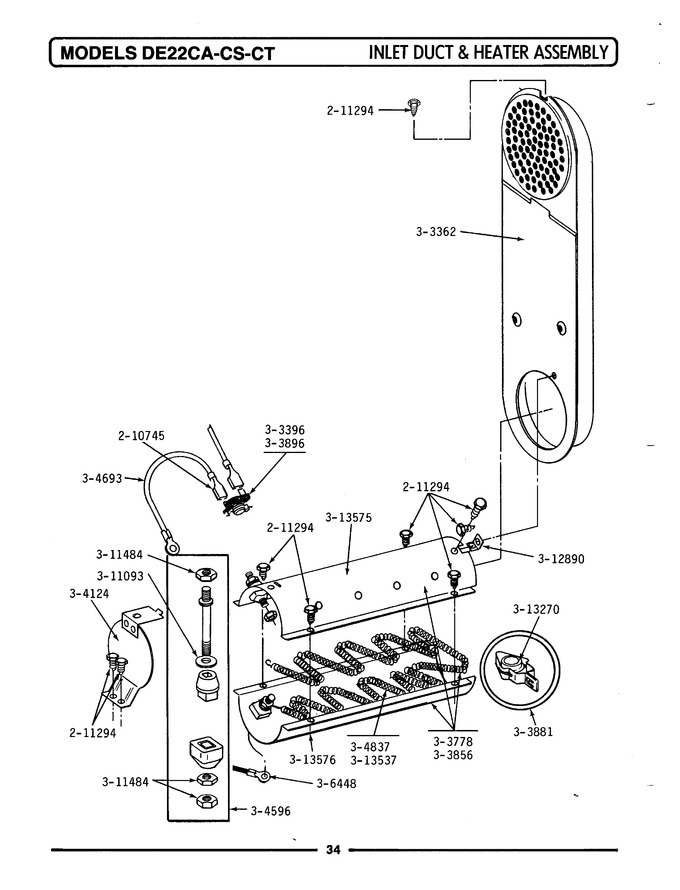

08 - Inlet Duct & Heater Assembly


09 - Motor, Blower, Base Frame & Thermostats


10 - Installation Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	210745		Wire Terminal	00	Appelez-nous	-
002	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
003	Y303362		Inlet Duct Assembly - De	00	Appelez-nous	-
004	WP303396		Thermostat, Hi-limit (elec)   (Replaces: 303396)	00		Immediately	$ 44.02
005	Y303778		Heater Assy. Complete (240v)	00			$ 199.36
006	Y303856		Heater Assy. Complete (208v)	00	Appelez-nous	-
007	WPY303881		Clip And Insulator Assembly   (Replaces: Y303881)	00		Immediately	$ 19.79
008	WP303896		Hi-limit Thermostat-canada   (Replaces: 303896)	00		Immediately	$ 66.12
009	304124		Heater Shield	00	Appelez-nous	-
010	Y304596		Terminal Insulator Assembly	00		Immediately	$ 22.97
011	WPY304693		Jumper Wire   (Replaces: Y304693)	00		Immediately	$ 6.47
012	W10116793		Heater Element Kit (208v)   (Replaces: Y304837)	00			$ 190.96
013	NLA		Wire	00	Appelez-nous	-
014	WP311093		Washer, 7/32 Inch   (Replaces: 311093)	00			$ 7.25
015	WP112432		Nut, Terminal Block   (Replaces: 311484)	00			$ 7.16
016	Y312890		Retainer, Heater Chamber	00	Appelez-nous	-
017	Y313270		Insulator For Heater Elemen	00			$ 5.85
018	Y313537		Heater Element (240v)	00	Appelez-nous	-
019	Y313575		Heater Chamber, Top	00	Appelez-nous	-
020	Y313576		Heater Chamber, Bottom	00	Appelez-nous	-
