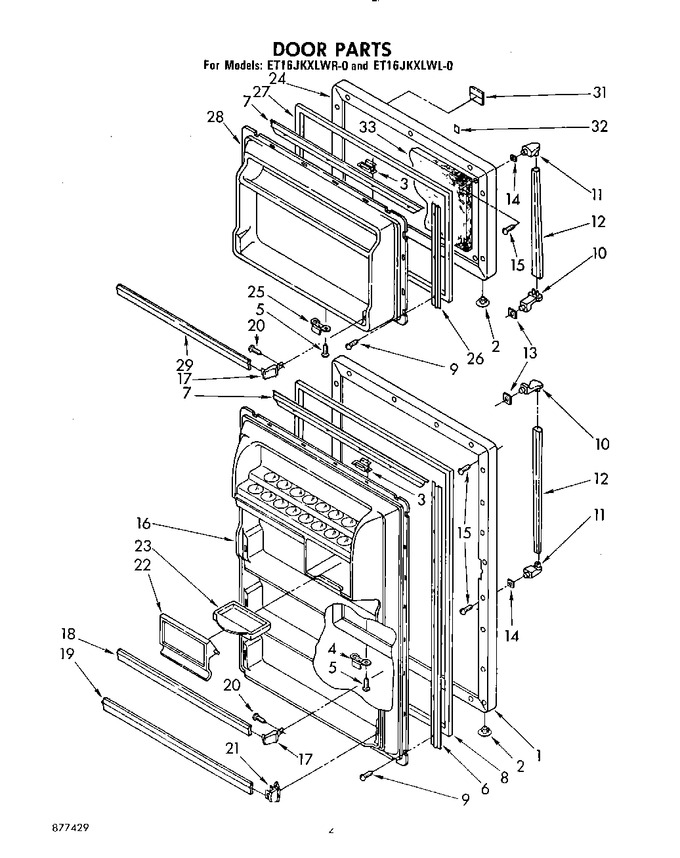

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944116		Door, Refrigerator L.h. (golden Harvest)		Appelez-nous	-
1	944117		Door, Refrigerator L.h. (new Avocado)		Appelez-nous	-
1	944118		Door, Refrigerator L.h. (almond)		Appelez-nous	-
1	944108		Door, Refrigerator (r.h. Model) (white)		Appelez-nous	-
1	944109		Door, Refrigerator (r.h. Model) (coffee)		Appelez-nous	-
1	944110		Door, Refrigerator (r.h. Model) (golden Harvest)		Appelez-nous	-
1	944111		Door, Refrigerator (r.h. Model) (new Avocado)		Appelez-nous	-
1	944112		Door, Refrigerator R.h. (almond)		Appelez-nous	-
1	944114		Door, Refrigerator L.h. (white)		Appelez-nous	-
1	944115		Door, Refrigerator L.h. (coffee)		Appelez-nous	-
2	989880		Hole Plug (2) (new Avocado)		Appelez-nous	-
2	989878		Hole Plug (2) (coffee)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 1/8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	836117		Retainer, Gasket Side (2)		Appelez-nous	-
7	836115		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
8	942299		Gasket, Door Magnetic		Appelez-nous	-
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
10	982947		End, Handle		Appelez-nous	-
11	982948		End, Handle		Appelez-nous	-
12	982943		Handle, Center		Appelez-nous	-
13	941917		Shim, Handle End		Appelez-nous	-
14	941918		Shim, Handle End		Appelez-nous	-
15	488818		Screw (2)				$ 42.82
16	943140		Panel, Interior		Appelez-nous	-
17	943135		Support & Trim End (2)		Appelez-nous	-
18	943142		Trim Shelf		Appelez-nous	-
19	943144		Trim Shelf		Appelez-nous	-
20	WP488729		Screw, 8-18 X 1/2   (Replaces: 488783)			Immediately	$ 7.01
21	943143		Retainer, Door Trim (2)		Appelez-nous	-
22	938729		Compartment, Door Butter		Appelez-nous	-
23	520747		Tray, Butter		Appelez-nous	-
24	944132		Door, Freezer, L.h. (almond)		Appelez-nous	-
24	944123		Door, Freezer R.h. (coffee)		Appelez-nous	-
24	944124		Door, Freezer R.h. (golden Harvest)		Appelez-nous	-
24	944125		Door, Freezer R.h. (new Avocado)		Appelez-nous	-
24	944126		Door, Freezer R.h. (almond)		Appelez-nous	-
24	944128		Door, Freezer, L.h. (white)		Appelez-nous	-
24	944129		Door, Freezer, L.h. (coffee)		Appelez-nous	-
24	944130		Door, Freezer, L.h. (golden Harvest)		Appelez-nous	-
24	944131		Door, Freezer, L.h. (new Avocado)		Appelez-nous	-
24	944122		Door, Freezer R.h. (white)		Appelez-nous	-
25	944035		Bracket, Door Stop		Appelez-nous	-
26	836119		Retainer, Gasket Side (2)		Appelez-nous	-
27	942903		Gasket, Door Magnetic		Appelez-nous	-
28	943145		Panel, Interior		Appelez-nous	-
29	943147		Trim, Shelf		Appelez-nous	-
31	945111		Insert, Nameplate		Appelez-nous	-
32	991259		Tape Strip		Appelez-nous	-
33	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
