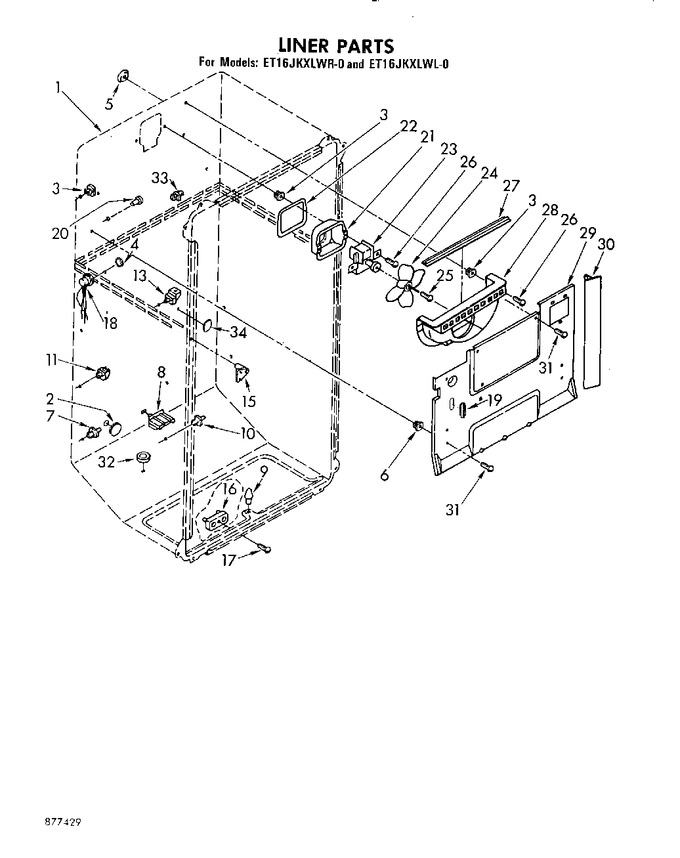

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	519890		Hole, Plug		Appelez-nous	-
3	842339		Grommet		Appelez-nous	-
4	659598		Hole, Plug		Appelez-nous	-
5	534348		Grommet, Water Inlet		Appelez-nous	-
6	848445		Grommet		Appelez-nous	-
7	536475		Shelf Stud (2)				$ 7.28
8	836412		Stud, Crisper Support		Appelez-nous	-
9	836409		Grommet, Crisper Cover		Appelez-nous	-
10	521878		Shelf Stud		Appelez-nous	-
11	523264		Stud, Saddle (l.s.) (2)		Appelez-nous	-
11	523263		Stud, Saddle R.s. (3)		Appelez-nous	-
13	836374		Retainer, Stud (4)		Appelez-nous	-
15	836040		Spacer (2)		Appelez-nous	-
16	539760		Spacer (8)		Appelez-nous	-
17	WP488163		Screw, 8 X 13/16 (8)   (Replaces: 488208)				$ 6.79
18	481658		Wiring, Ice Maker		Appelez-nous	-
19	659776		Hole Plug, Evaporator		Appelez-nous	-
20	850738		Receptacle Cap		Appelez-nous	-
21	836474		Cover, Motor		Appelez-nous	-
22	836475		Gasket, Cover		Appelez-nous	-
23	482731		Motor, Fan   (Replaces: 548697)			Immediately	$ 71.15
24	WP1100938		Blade, Fan   (Replaces: 548041)				$ 79.08
25	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
26	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 12.62
27	935068		Gasket, Sealing		Appelez-nous	-
28	935067		Scroll, Fan		Appelez-nous	-
29	983991		Evaporator, Cover White		Appelez-nous	-
30	981749		Gasket, Evaporator		Appelez-nous	-
31	WP488729		Screw, 8-15 X 1/2 (6)   (Replaces: 488992)			Immediately	$ 7.01
32	835370		Drain Hole Cover		Appelez-nous	-
33	651590		Shelf Stud Hook		Appelez-nous	-
34	943920		Drain Fitting Grommet		Appelez-nous	-
