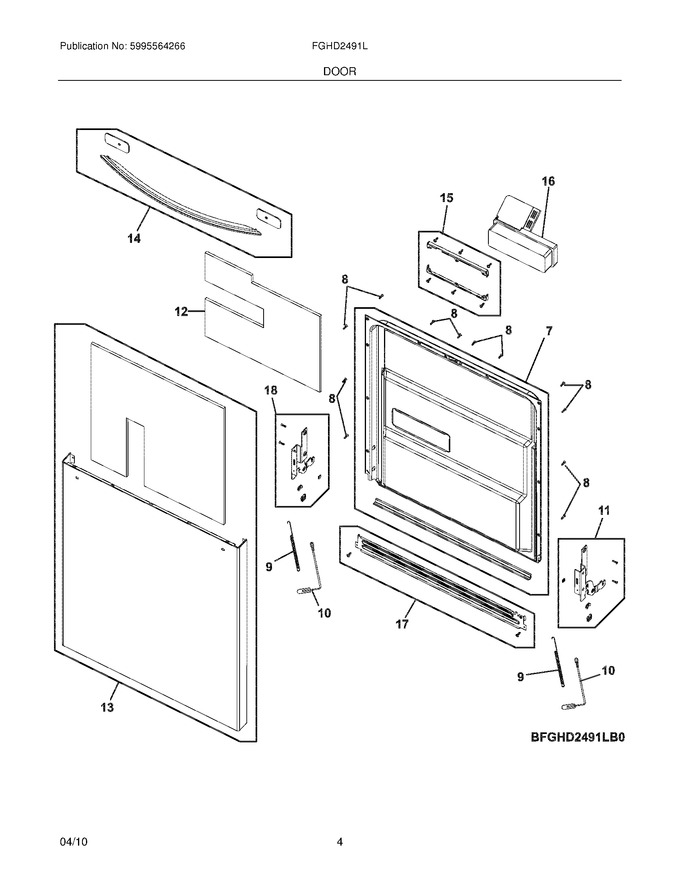

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Lower Frame/drying System
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 5304536413 | Liner Assembly,door ,inner ,w/wiper (Replaces: 5304475579) |
|
Immediately | $ 248.07 | ||||
| 8 | 5304475580 | Screw,door Liner ,(12) |
|
$ 14.96 | |||||
| 9 | 5304530071 | Spring,door ,(2) (Replaces: 5304475581) |
|
Immediately | $ 27.96 | ||||
| 10 | 5304530071 | Cable,door ,(2) (Replaces: 5304475582) |
|
Immediately | $ 27.96 | ||||
| 11 | 5304475583 | Hinge Assembly,rh ,w/screws-spacer |
|
$ 95.68 | |||||
| 12 | 5304475584 | Insulation,door Liner |
|
$ 56.44 | |||||
| 13 | 5304478322 | Door Assembly,outer ,white ,w/insulation |
|
$ 188.48 | |||||
| 14 | 5304478324 | Handle Assembly,outer ,white ,w/spacers |
|
- | |||||
| 15 | 5304475587 | Bracket Assembly,dispenser ,w/screws |
|
$ 19.14 | |||||
| 17 | 5304475589 | Support Assembly,hinge ,w/screws |
|
$ 47.93 | |||||
| 18 | 5304475590 | Hinge Assembly,lh ,w/screws-spacer |
|
$ 66.49 | |||||
| F16 | 5304507354 | Dispenser Assembly,detergent (Replaces: 5304475588) |
|
Immediately | $ 77.60 |
