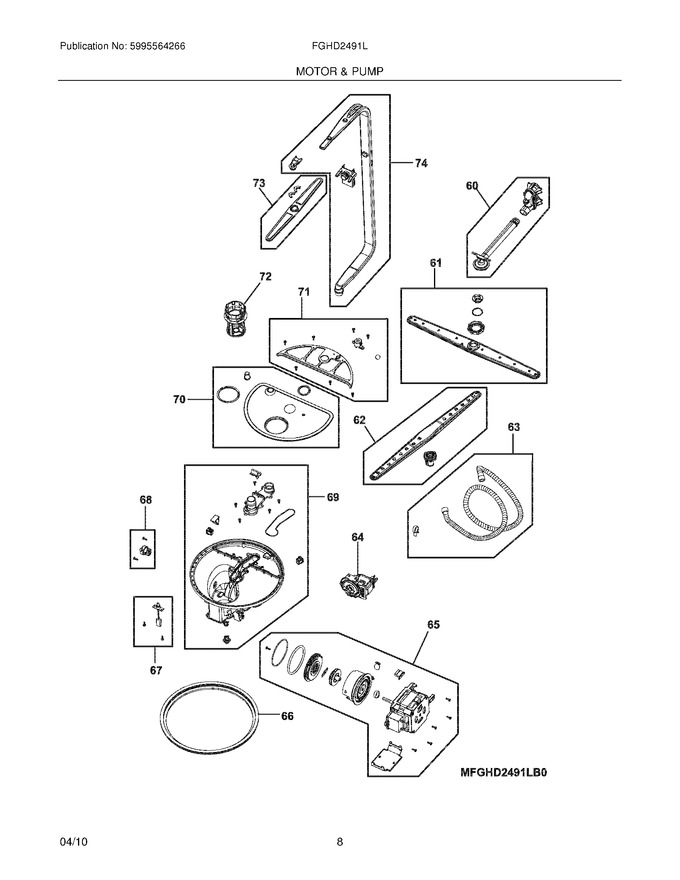

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
66	5304475638		Gasket,sump				$ 108.41
70	5304475642		Filter Assembly,coarse				$ 96.55
71	5304475643		Filter Assembly,fine ,w/screws				$ 48.67
72	5304475644		Trap,glass				$ 59.72
F60	5304475632		Duct Assembly,spray Arm ,middle				$ 87.48
F61	5304475633		Spray Arm Assembly,middle				$ 124.64
F62	5304475634		Spray Arm Assembly,lower				$ 52.98
F63	5304494065		Hose Assembly,drain ,w/clamp   (Replaces: 5304475635)			Immediately	$ 92.30
F64	5304524920		Pump,drain   (Replaces: 5304475636)			Immediately	$ 298.81
F65	5304475637		Motor Assembly,wash ,w/screws-seals				$ 290.17
F67	5304475639		Senser Assembly,thermistor ,w/screws				$ 32.03
F68	5304475640		Senser Assembly,turbidity ,w/screws				$ 153.09
F69	5304475641		Sump Assembly,w/clips-screws				$ 78.49
F73	5304475645		Spray Arm Assembly,upper			Immediately	$ 109.72
F74	5304475646		Tube Assembly,delivery				$ 161.60
