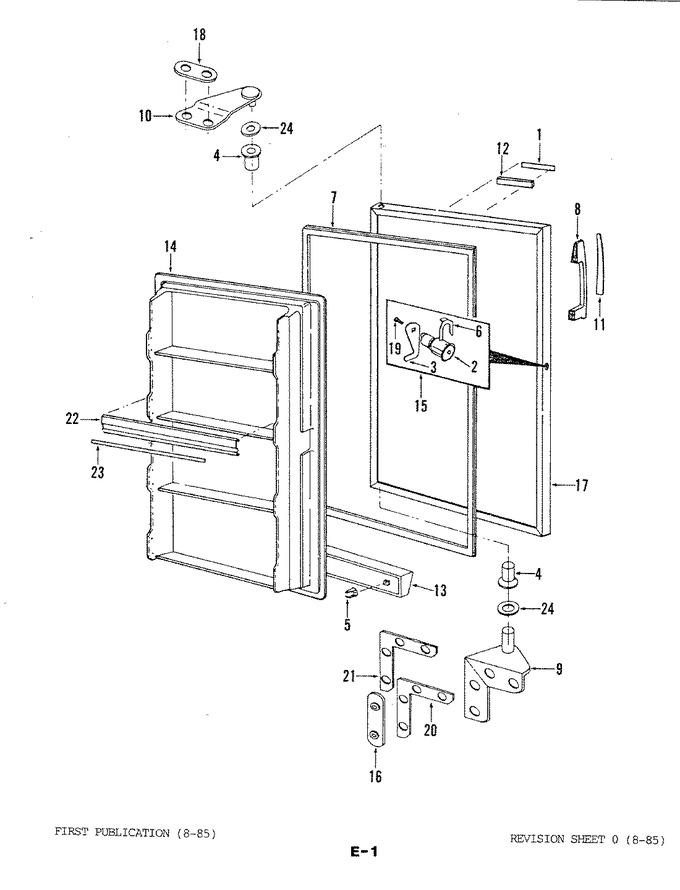

01 - Door (df10aal, Df12abl)


02 - Door (df10abl, Df10ablt)


03 - Freezer Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	048434-01		Nameplate Bezel		Appelez-nous	-
2	Y04689701		Lock Body		Appelez-nous	-
3	3-35284-001		Lock Bolt   (Replaces: Y04689702)				$ 24.42
4	045289-01		Bushing		Appelez-nous	-
5	1-80247-101		Clip   (Replaces: Y04552001)			Immediately	$ 9.86
6	Y04689703		Clip		Appelez-nous	-
7	047774-02		Gasket F12		Appelez-nous	-
8	59620-1		Door Handle		Appelez-nous	-
9	047717-04		Bottom Hinge		Appelez-nous	-
10	047716-03		Top Hinge		Appelez-nous	-
11	59256-8		Handle Trim		Appelez-nous	-
12	046977-05		Insulation		Appelez-nous	-
12	Y04689704		Key		Appelez-nous	-
12	049338-04		Nameplate		Appelez-nous	-
13	045532-06		Kickplate		Appelez-nous	-
14	047747-02		Inner Panel		Appelez-nous	-
15	3-35284-001		Lock Assembly   (Replaces: Y04690601)				$ 24.42
16	045434-01		Nut		Appelez-nous	-
17	047746-06-WW		Outer Panel		Appelez-nous	-
18	9986-93		Screw		Appelez-nous	-
18	045443-02		Plate		Appelez-nous	-
18	9986-112		Screw		Appelez-nous	-
18	WP90767		Screw   (Replaces: Y04637304)			Immediately	$ 7.04
18	Y04589901		Screw		Appelez-nous	-
19	044156-01		Screw		Appelez-nous	-
19	WP4159193		Screw   (Replaces: Y04689705)				$ 4.29
19	046377-01		Screw		Appelez-nous	-
19	048417-04		Washer, Lock		Appelez-nous	-
20	Y04529701		Shim		Appelez-nous	-
21	Y04529702		Shim		Appelez-nous	-
22	045521-07		Shelf Trim		Appelez-nous	-
23	420063-01		Washer		Appelez-nous	-
24	54233-1		Washer				$ 7.71
