01 - Door (df10aal, Df12abl)
02 - Door (df10abl, Df10ablt)
03 - Freezer Compartment

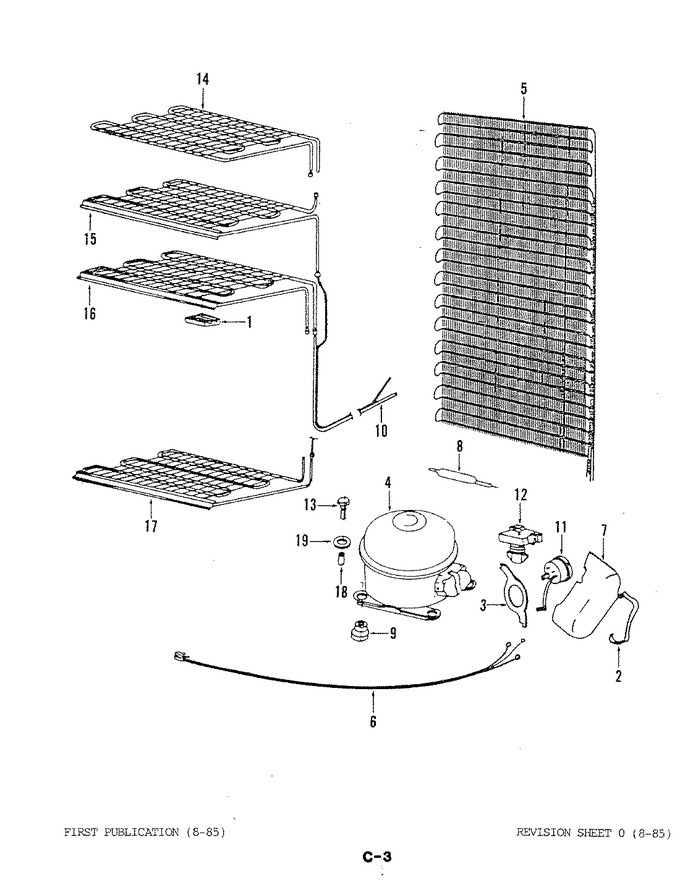

04 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04913701 | Clamp |
|
- | |||||
| 2 | 046355-01 | Clip |
|
- | |||||
| 3 | 045934-01 | Clip |
|
- | |||||
| 4 | W10439652 | Compressor (Replaces: RMC250-1) |
|
$ 379.03 | |||||
| 5 | RA43880-1 | Condenser Kit |
|
- | |||||
| 6 | Y00075401 | Line Cord |
|
- | |||||
| 7 | 046354-01 | Relay Cover |
|
- | |||||
| 8 | WPW10143759 | Drier (Replaces: 13900) |
|
Immediately | $ 27.70 | ||||
| 9 | 004691-02 | Grommet |
|
- | |||||
| 10 | 048465-02 | Heat Exchanger |
|
- | |||||
| 11 | 041675-44 | Overload |
|
- | |||||
| 12 | 041676-46 | Relay |
|
- | |||||
| 13 | Y04703209 | Screw Comp Mtg |
|
- | |||||
| 14 | 048136-03 | Evap Shelf,top |
|
- | |||||
| 15 | 048135-06 | Evap Shelf |
|
- | |||||
| 16 | 048133-05 | Evap Shelf |
|
- | |||||
| 17 | 048134-03 | Evap Shelf |
|
- | |||||
| 18 | 004694-01 | Sleeve |
|
- | |||||
| 19 | 005417-03 | Washer |
|
- |
