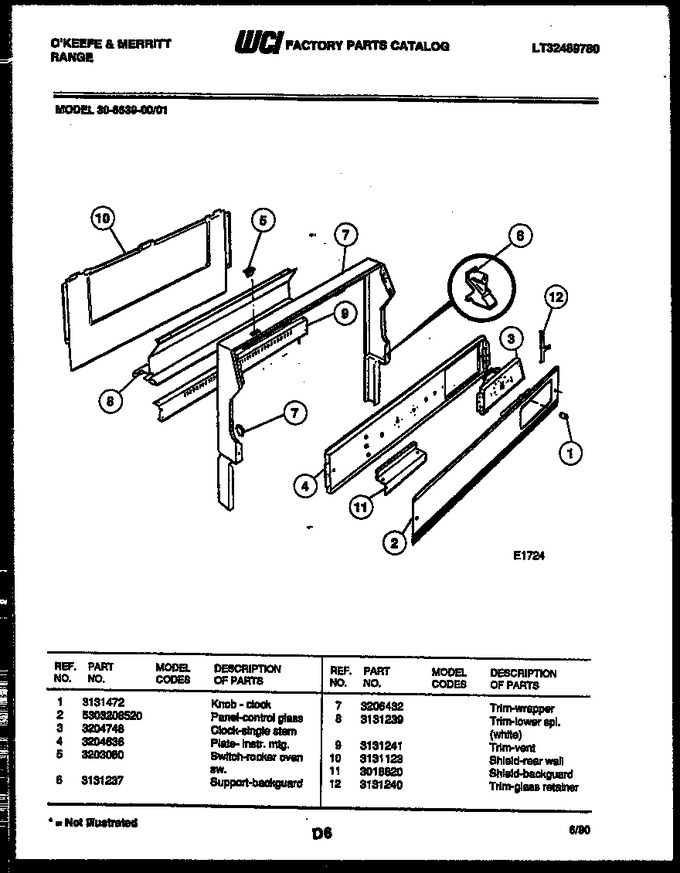

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131472 | Knob-clock |
|
- | |||||
| 2 | 5303208520 | Panel-control Glass |
|
- | |||||
| 3 | 3204748 | Clock-single Stem |
|
- | |||||
| 4 | 3204636 | Plate - Instr Mtg |
|
- | |||||
| 5 | 3203080 | Switch-rocker Oven Sw. |
|
- | |||||
| 6 | 3131237 | Support Backguard |
|
- | |||||
| 7 | 3206432 | Trim-wrapper |
|
- | |||||
| 9 | 3131241 | Trim-vent |
|
- | |||||
| 10 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 11 | 3018820 | Shield-backguard |
|
- | |||||
| 12 | 3131240 | Trim-glass Retainer |
|
- |
