SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

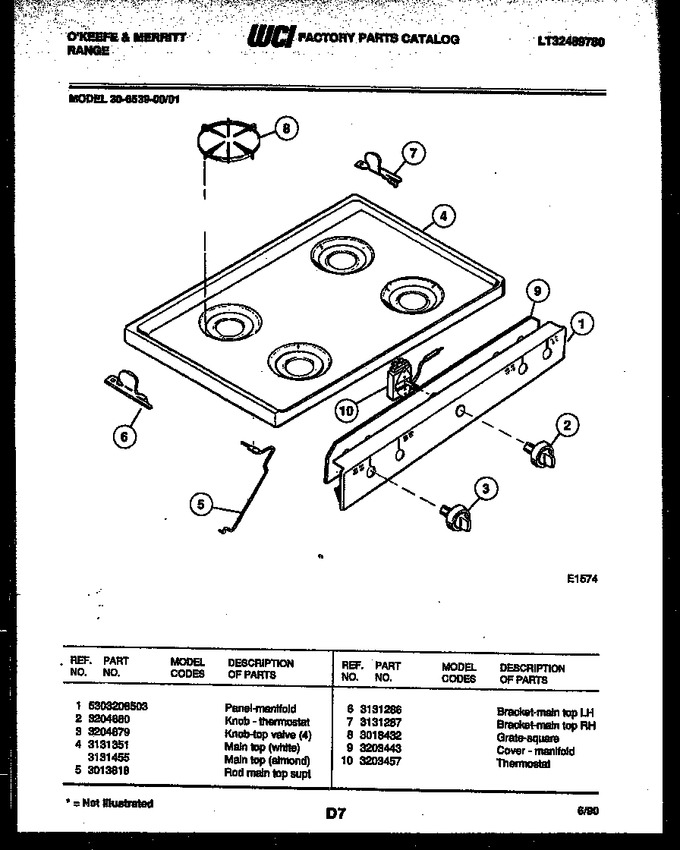

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303208503 | Panel-manifold |
|
- | |||||
| 2 | 3204880 | Knob-thermostat |
|
- | |||||
| 3 | 3204879 | Knob - Top Valve (4) |
|
- | |||||
| 4 | 3131455 | Main Top, Almond |
|
- | |||||
| 5 | 3013818 | Rod - Maintop Supt. |
|
- | |||||
| 6 | 3131286 | Bracket-main Top Lh |
|
- | |||||
| 7 | 3131287 | Bracket-main Top Rh |
|
- | |||||
| 8 | 3018432 | Grate Square |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 3203457 | Thermostat |
|
- |
