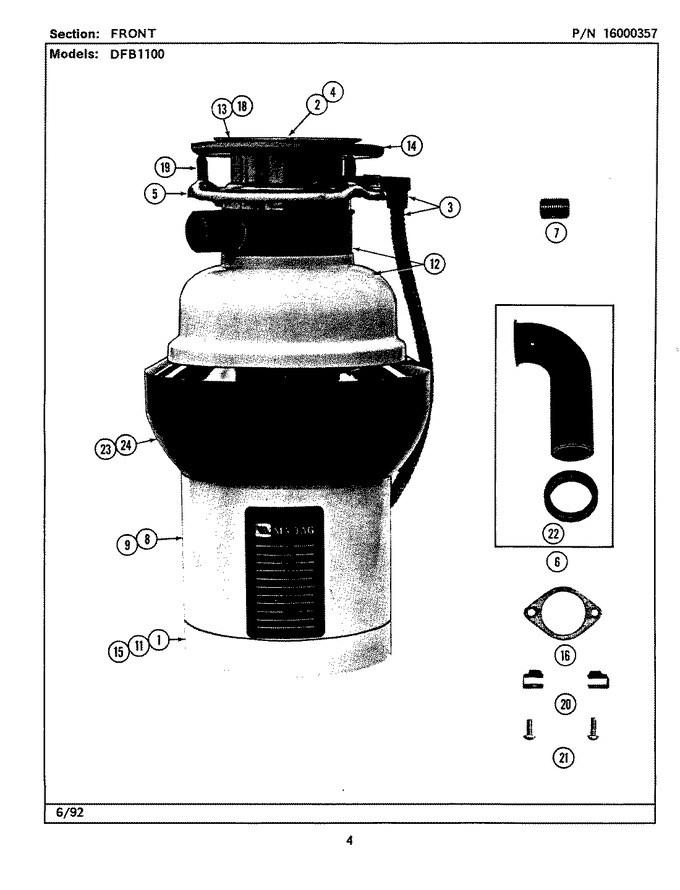

SELECT A DIAGRAM

01 - Drain Chamber


02 - Front


03 - Grinding Chamber


04 - Lids


05 - Outer Housing


06 - Sink Flange


07 - Stator & Rotor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y800031		Splash Shield W/support - F	A0	Appelez-nous	-
2	800033		Lid - Fc	A0	Appelez-nous	-
3	800151		Drain Elbow With Gasket	A0	Appelez-nous	-
4	800154		Mounting Clamp Kit	A0	Appelez-nous	-
5	800240		Housing Clamp	A0	Appelez-nous	-
6	810001		Gasket For Sink Flange	A0	Appelez-nous	-
7	810002		Support Ring	A0	Appelez-nous	-
8	810012		Mounting Plate-upper	A0	Appelez-nous	-
9	810031		Mounting Plate-drain Elbow	A0	Appelez-nous	-
10	810052		Insulation-lower Housing	A0	Appelez-nous	-
11	810054		Top Insulation Half-channel	A0	Appelez-nous	-
12	810334		Spring - Retainer	A0	Appelez-nous	-
13	810076		Spring Retainer-top Housing	A0	Appelez-nous	-
14	810208		Plug For Upper Housing	A0	Appelez-nous	-
15	810220		Sink Flange	A0	Appelez-nous	-
16	810227		Mounting Bolt	A0	Appelez-nous	-
17	810228		Mounting Plate-lower	A0	Appelez-nous	-
18	810238		Retainer	A0	Appelez-nous	-
19	810239		Screw	A0	Appelez-nous	-
20	810268		Gasket For Drain Elbow	A0	Appelez-nous	-
21	810306		Cover, Bottom	A0	Appelez-nous	-
22	810307		Clamp Cover	A0	Appelez-nous	-
23	810311		Cover, Top Half	A0	Appelez-nous	-
24	810313		Cover Top Half	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
