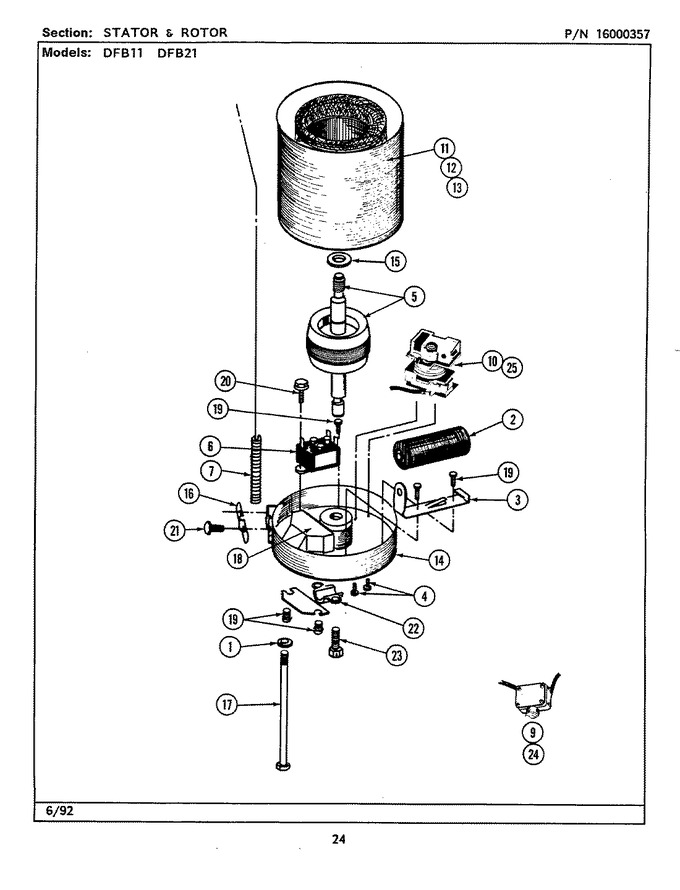

07 - Stator & Rotor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	800199		Stator With Relay	A0	Appelez-nous	-
3	800232P		Stator Alm   (Replaces: 800232)	A0			$ 273.84
4	810004		Oil Slinger, Bottom-rubber	A0	Appelez-nous	-
5	800008		Rotor With Slinger	A0	Appelez-nous	-
6	810144		Wire Shield	A0	Appelez-nous	-
7	800236		End Bell Kit	A0	Appelez-nous	-
8	810145		Screw	A0	Appelez-nous	-
9	800059		Terminal Cover Plate & Scre	A0	Appelez-nous	-
10	054853		Lock Washer,thru-bolt	A0	Appelez-nous	-
11	810022		Thru-bolt-no.10-32 X 6 In	A0	Appelez-nous	-
12	W11233072		Screw   (Replaces: 810225)	A0		Immediately	$ 12.62
13	810204		Cable Clamp	A0	Appelez-nous	-
14	WPW10068250		Screw-overload Relay   (Replaces: 310844)	A0			$ 3.66
15	Y800157		Motor Protector-batch	A0	Appelez-nous	-
16	810272		Motor Protector Bracket	A0	Appelez-nous	-
17	211149		Clip, Capacitor	A0			$ 6.23
18	Y200832		Capacitor	A0			$ 66.37
19	800159		Start Relay - Canada	A0	Appelez-nous	-
