SELECT A DIAGRAM

Diagram for 01 - Antenna, Tray, Outercase,
01 - Antenna, Tray, Outercase,

Diagram for 02 - Base And Filter
02 - Base And Filter

Diagram for 03 - Door
03 - Door

Diagram for 04 - Electrical, Grease Shield, Ducts,
04 - Electrical, Grease Shield, Ducts,

No Diagram Image Available
05 - Supplemental Information

Diagram for 06 - Timer And Escutcheon
06 - Timer And Escutcheon

Diagram for 07 - Wiring Information
07 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 53001609 Screw Tapping, Counter Sunk Hd Appelez-nous -
2 53001579 Cover, Lamp- Stainless Appelez-nous -
3 R0654036 Screw, Truss Hd S/tap Appelez-nous -
4 53001577 Outer Case- Stainless Appelez-nous -
5 R0654183 Screw, Truss Hd Appelez-nous -
6 R0131246 Screw, Tapping Truss Head Appelez-nous -
7 53001739 Back Plate Appelez-nous -
8 59001235 Suction Cup- For Tray Removal Appelez-nous -
9 R0654180 Screw, Pan Hd Appelez-nous -
10 53001723 Motor, Antenna 220-240v 50hz Appelez-nous -
11 53001554 Rivet Assembly Appelez-nous -
11 12002592 Kit- Antenna Top Special Order $ 145.29

12 12002593 Kit- Antenna Bottom Appelez-nous -
12 53001554 Rivet Assembly Appelez-nous -
13 53001619 Bracket, Stacking Appelez-nous -
14 53001555 Tray, Ceramic Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

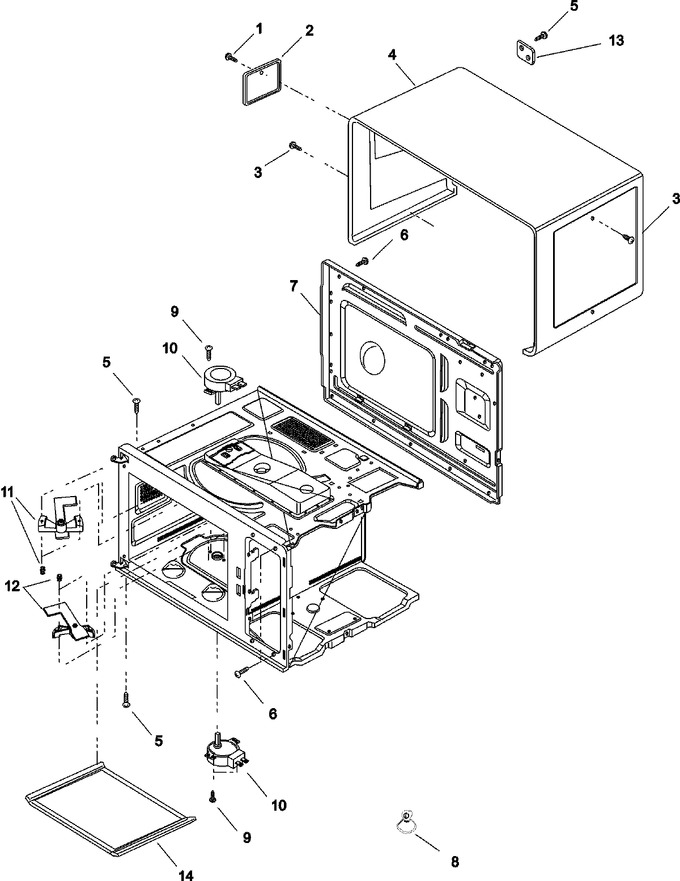

Diagram for DFS18E (BOM: P1330222M)
