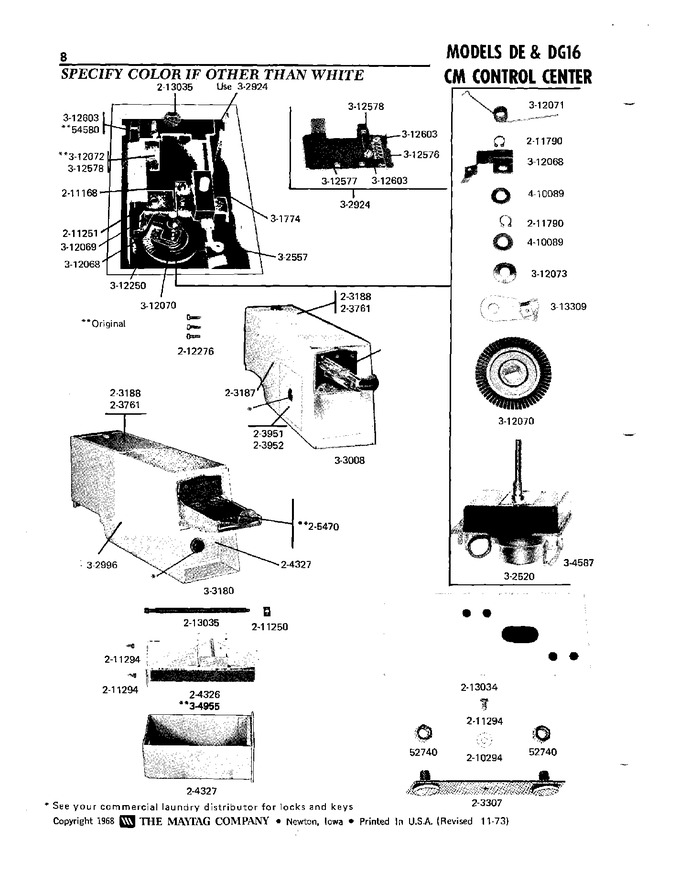

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Maytag Coin Slide | 00 |
|
- | ||||
| 002 | Y301774 | Switch For Coin Slide | 00 |
|
- | ||||
| 003 | NLA | Coin Box Cover | 00 |
|
- | ||||
| 004 | NLA | Timer | 00 |
|
- | ||||
| 005 | NLA | Wire, Switch To Timer | 00 |
|
- | ||||
| 006 | Y302924 | Actuator Kit-dryer Slides | 00 |
|
- | ||||
| 007 | NLA | Outer Case-white | 00 |
|
- | ||||
| 008 | NLA | Control Center-white | 00 |
|
- | ||||
| 009 | NLA | Control Center-white | 00 |
|
- | ||||
| 010 | Y312068 | Return Lever | 00 |
|
$ 16.46 | ||||
| 011 | Y312069 | Stop For Actuator | 00 |
|
- | ||||
| 012 | NLA | Ratchet For Timer | 00 |
|
- | ||||
| 013 | Y312071 | Return Spring For Actuator | 00 |
|
- | ||||
| 014 | NLA | Slide Adjustment | 00 |
|
- | ||||
| 015 | 312073 | Spring Washer | 00 |
|
- | ||||
| 016 | 312250 | Timer Support Bracket | 00 |
|
- | ||||
| 017 | Y312576 | Zero Slide Adjustment | 00 |
|
- | ||||
| 018 | Y312577 | Bracket For Slide | 00 |
|
- | ||||
| 019 | Y312578 | Slide Adjustment | 00 |
|
- | ||||
| 020 | NLA | Screw Adjustment Assembly | 00 |
|
- | ||||
| 021 | Y313309 | Timer Actuator Lever | 00 |
|
- | ||||
| 022 | NLA | Outer Case-white | 00 |
|
- | ||||
| 023 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 024 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 025 | 203761 | Access Door-white | 00 |
|
- | ||||
| 026 | NLA | Coin Box, White | 00 |
|
- | ||||
| 027 | NLA | Super Security Coin Box | 00 |
|
- | ||||
| 028 | NLA | Coin Drop Assembly | 00 |
|
- | ||||
| 029 | NLA | Coin Box-white----na | 00 |
|
- | ||||
| 030 | 210294 | Washer | 00 |
|
- | ||||
| 031 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 032 | NLA | Fastener | 00 |
|
- | ||||
| 033 | 211251 | Screw | 00 |
|
- | ||||
| 034 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 035 | 211790 | Lock Ring For Timer Shaft | 00 |
|
$ 6.54 | ||||
| 036 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 037 | NLA | Gasket Under Control Center | 00 |
|
- | ||||
| 038 | 213035 | Bolt, Locking | 00 |
|
$ 5.84 | ||||
| 039 | 410089 | Washer | 00 |
|
- | ||||
| 040 | M0282009 | Hex. Nut----na (Replaces: Y052679) | 00 |
|
$ 12.06 | ||||
| 041 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 042 | NLA | Screw, No.10-32 X 1/4 | 00 |
|
- | ||||
| 043 | NLA | Lock Washer, 3/16 | 00 |
|
- |
