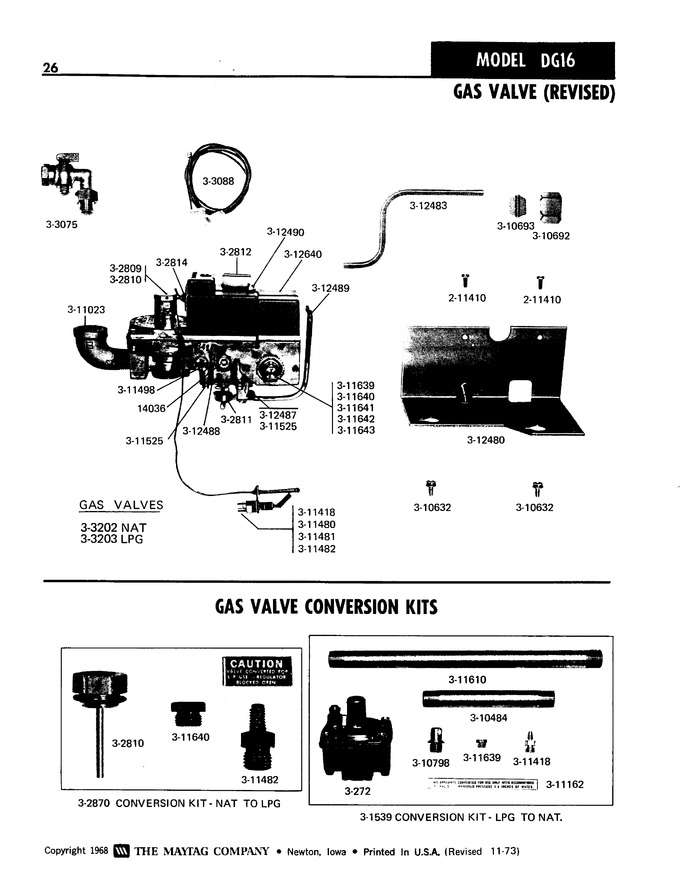

09 - Gas Valve (revised)


10 - Burner Assembly


11 - Installation Accessories


12 - Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	300272		Pressure Regulator	00	Appelez-nous	-
002	301539		Conversion Kit-lpg To Nat.	00	Appelez-nous	-
003	NLA		Screw Assembly, Leak Limit	00	Appelez-nous	-
004	NLA		Screw Assm - Blue Block Ope	00	Appelez-nous	-
005	NLA		Shaft Assembly For Pilot	00	Appelez-nous	-
006	Y302812		Main Burner Solenoid	00	Appelez-nous	-
007	NLA		Pilot With Pressure Switch	00	Appelez-nous	-
008	NLA		Conversion Kit	00	Appelez-nous	-
009	NLA		Shut-off Valve	00	Appelez-nous	-
010	NLA		Gas Valve Wires With Plug	00	Appelez-nous	-
011	Y303202		Gas Valve W/elbow - Natural	00	Appelez-nous	-
012	Y303203		Gas Valve With Elbow - Lp	00	Appelez-nous	-
013	310484		Manifold, Lpg 5 Inch	00	Appelez-nous	-
014	Y310632		Screw	00	Appelez-nous	-
015	310692		Compression Nut	00	Appelez-nous	-
016	Y310693		Compression Sleeve	00	Appelez-nous	-
017	Y310798		Burner Orifice Brass No.47	00	Appelez-nous	-
018	NLA		Street Elbow, 3/8 Inch	00	Appelez-nous	-
019	NLA		Label-natural	00	Appelez-nous	-
020	Y311418		Pilot Orifice	00	Appelez-nous	-
021	Y311480		Pilot Orifice (lp)	00	Appelez-nous	-
022	NLA		Pilot Orifice (mfg.)	00	Appelez-nous	-
023	Y311482		Pilot Orifice-lpg	00	Appelez-nous	-
024	Y311498		Compression Nut	00	Appelez-nous	-
025	NLA		Screw For Regulator	00	Appelez-nous	-
026	311610		Pipe, 10-1/2 Inch	00	Appelez-nous	-
027	Y311639		Orifice For Main Burner	00	Appelez-nous	-
028	NLA		Orifice For Main Burner	00	Appelez-nous	-
029	NLA		Orifice For Main Burner	00	Appelez-nous	-
030	NLA		Orifice, Main Burner (mfg)	00	Appelez-nous	-
031	NLA		Orifice For Main Burner	00	Appelez-nous	-
032	NLA		Gas Control Bracket	00	Appelez-nous	-
033	Y312483		Pilot Tube	00	Appelez-nous	-
034	NLA		Bracket For Lever	00	Appelez-nous	-
035	NLA		Gasket For Pilot	00	Appelez-nous	-
036	NLA		Lever For Pilot	00	Appelez-nous	-
037	NLA		Screw For Main Solenoid	00	Appelez-nous	-
038	NLA		Valve Cover For 3-3202	00	Appelez-nous	-
039	Y014036		Pipe Plug (1/8``)	00	Appelez-nous	-
040	NLA		Screw, Hex Hd No.8 X 3/8 Inch	00	Appelez-nous	-
