SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Control Center Shroud


04 - Control Center

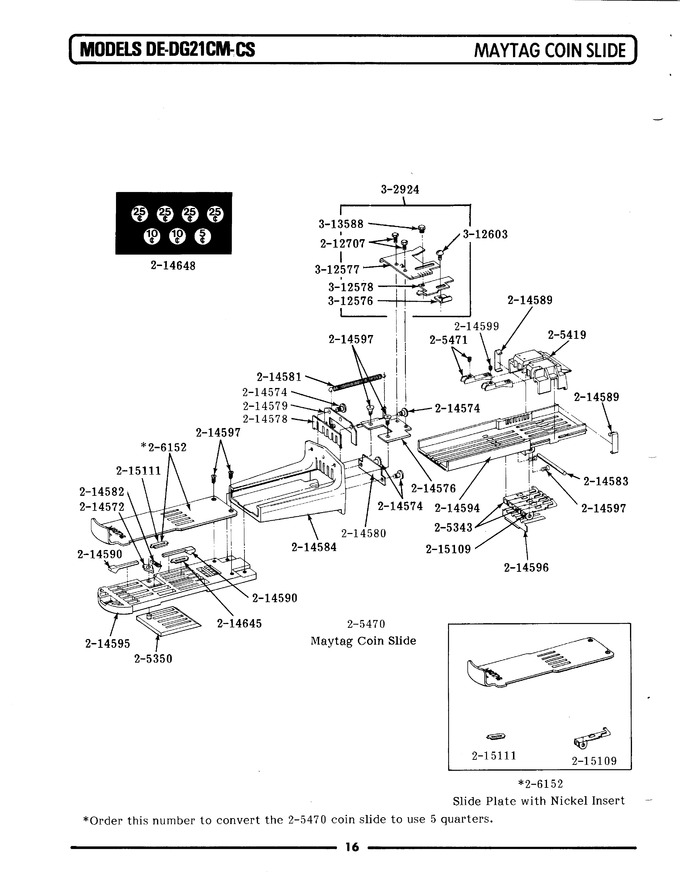

05 - Maytag Coin Slide


06 - Front Panel & Door Assembly


07 - Lint Screen, Tumbler (front & Back)


08 - Gas Valve\burner\combustion Cone


09 - Inlet Duct, Gas Valve & Combustion Cone


10 - Motor, Blower, Base Frame & Thermostats


11 - Installation Accessories


12 - Conversion Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	205343		Lower Gage Arm Assembly	00	Appelez-nous	-
002	205222		Stop Block Assembly   (Replaces: 205350)	00		Immediately	$ 94.17
003	NLA		Measuring Block Assembly	00	Appelez-nous	-
004	NLA		Maytag Coin Slide	00	Appelez-nous	-
005	NLA		Movable Coin Gage	00	Appelez-nous	-
006	NLA		Slide Plate W/nickel Insert	00	Appelez-nous	-
007	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
008	214572		Ratchet Arm	00			$ 44.31
009	NLA		Stud For Coin Slide	00	Appelez-nous	-
010	NLA		End Bracket For Slide	00	Appelez-nous	-
011	214578		Gate For Coin Opening	00	Appelez-nous	-
012	NLA		Retainer For Gate	00	Appelez-nous	-
013	NLA		Retainer For Gage Spring	00	Appelez-nous	-
014	214581		Return Spring	00	Appelez-nous	-
015	214582		Spring For Ratchet Arm	00	Appelez-nous	-
016	NLA		Pin For Lower Gage Arm	00	Appelez-nous	-
017	214584		Housing For Coin Slide	00	Appelez-nous	-
018	214589		Spring Clip	00			$ 12.50
019	NLA		Plug For Coin Opening	00	Appelez-nous	-
020	214594		Base Insert For Housing	00	Appelez-nous	-
021	NLA		Slide Body	00	Appelez-nous	-
022	214596		Spring For Lower Gage Arm	00	Appelez-nous	-
023	214597		Screw	00	Appelez-nous	-
024	NLA		Set Screw For Gage	00	Appelez-nous	-
025	NLA		Dime Insert	00	Appelez-nous	-
026	214648		Coinage Decal	00	Appelez-nous	-
027	NLA		Lower Gage Arm	00	Appelez-nous	-
028	NLA		Nickel Insert	00	Appelez-nous	-
029	Y302924		Actuator Kit-dryer Slides	00	Appelez-nous	-
030	Y312576		Zero Slide Adjustment	00	Appelez-nous	-
031	Y312577		Bracket For Slide	00	Appelez-nous	-
032	Y312578		Slide Adjustment	00	Appelez-nous	-
033	NLA		Screw Adjustment Assembly	00	Appelez-nous	-
034	WP488234		Screw   (Replaces: Y313588)	00			$ 6.07

    View Diagram in Separate Window       Print Part List
