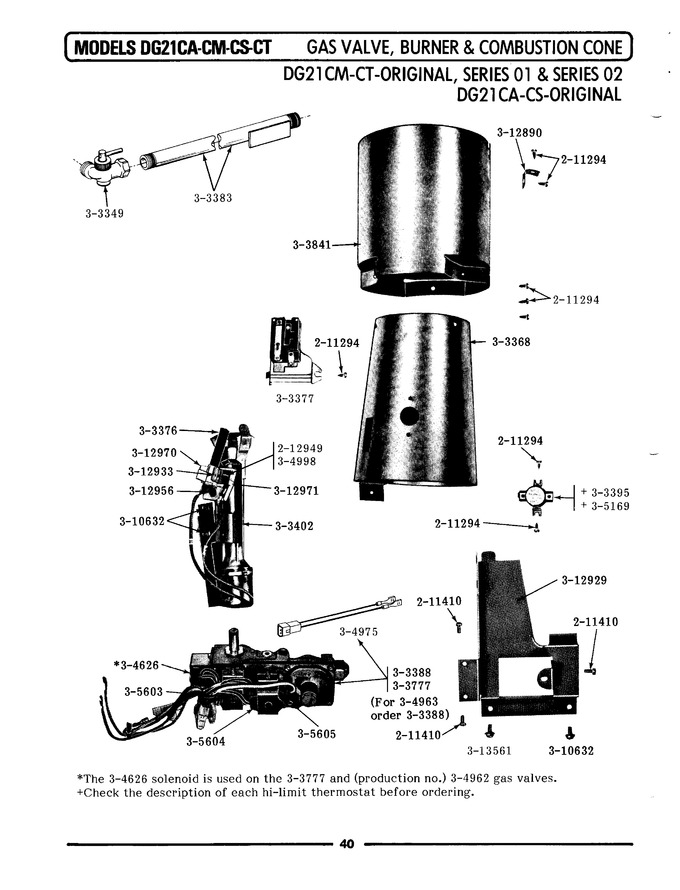

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
002	NLA		Screw, Hex Hd No.8 X 3/8 Inch	00	Appelez-nous	-
003	212949		Screw	00	Appelez-nous	-
004	Y303349		Shut-off, Gas Valve	00	Appelez-nous	-
005	Y303368		Cone, Combustion	00	Appelez-nous	-
006	303376		Igniter For Gas Valve Pilot	00			$ 27.90
007	WP338906		Sensor, Radiant   (Replaces: Y303377)	00		Immediately	$ 46.72
008	Y303383		Pipe & Bracket Assy.	00	Appelez-nous	-
009	WP303395		Thermostat, Hi-limit (gas)   (Replaces: 303395)	00		Immediately	$ 66.35
010	Y303402		Burner Assembly Na	00	Appelez-nous	-
011	Y303777		Gas Valve Assembly	00	Appelez-nous	-
012	Y303841		Cone, Extension (combustion)	00	Appelez-nous	-
013	Y304626		Side Coil	00	Appelez-nous	-
014	304975		Gas Valve Harness	00	Appelez-nous	-
015	WP12990527		Screw   (Replaces: 304998)	00		Immediately	$ 7.15
016	WP305169		Thermostat, Hi-limit Gas   (Replaces: 305169)	00			$ 117.03
017	305603		Secondary Coil	00	Appelez-nous	-
018	305604		Holding Coil	00			$ 57.03
019	WP305605		Booster Coil   (Replaces: 305605)	00			$ 102.82
020	Y310632		Screw	00	Appelez-nous	-
021	Y312890		Retainer, Heater Chamber	00	Appelez-nous	-
022	312929		Gas Valve Bracket	00	Appelez-nous	-
023	NLA		Clip For Igniter, Right-han	00	Appelez-nous	-
024	312956		Screw-igniter & Clip Mount	00	Appelez-nous	-
025	NLA		Clip For Igniter, Left-hand	00	Appelez-nous	-
026	Y312971		Insulator For Igniter Mount	00	Appelez-nous	-
027	Y313561		Screw----na	00			$ 5.27
