SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Front Panel, Timer, Timer Dial & Knob


04 - Front Panel & Door Assembly


05 - Lint Screen, Tumbler (front & Back)


06 - Door, Tumbler, Tumbler Front & Back


07 - Inlet Duct, Gas Valve & Combustion Cone


08 - Inlet Duct, Gas Valve (series 02)


09 - Motor, Blower, Base Frame & Thermostats


10 - Installation Accessories

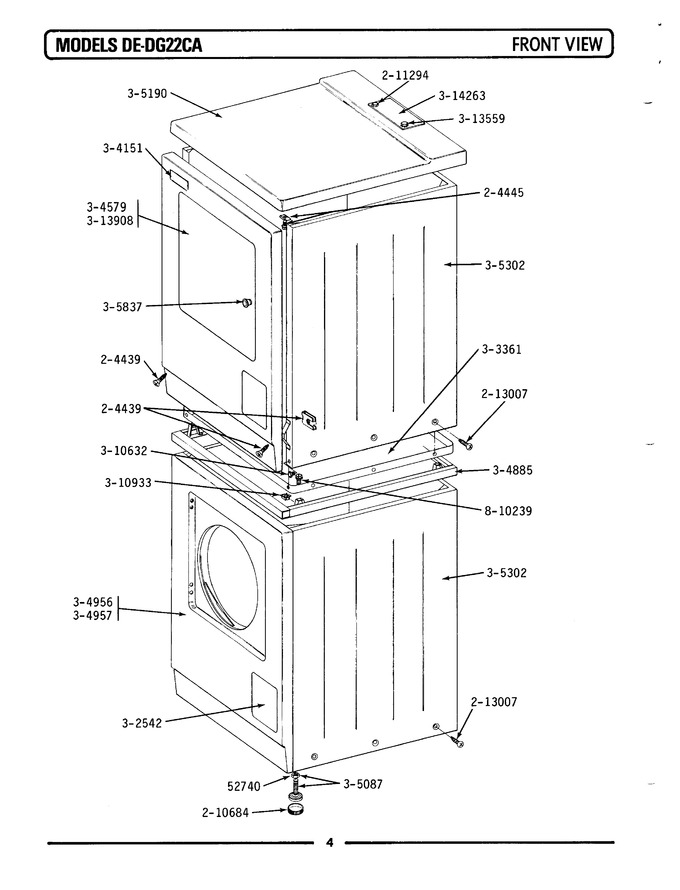

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP62739		Nut   (Replaces: Y052740)	00			$ 6.85
002	204439		Screw & Fstner Assy(frt.panel)	00			$ 8.80
003	204445		Screw & Fastener Asy.	00	Appelez-nous	-
004	WP210684		Foot, Rubber   (Replaces: 210684)	00		Immediately	$ 14.09
005	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
006	213007		Screw, Cabinet	00			$ 10.99
007	NLA		Access Door (white)	00	Appelez-nous	-
008	Y303361		Base Assy.	00	Appelez-nous	-
009	NLA		Name Plate On Control Panel	00	Appelez-nous	-
010	Y304579		Door-white	00	Appelez-nous	-
011	NLA		Spacer Assembly	00	Appelez-nous	-
012	NLA		Front Panel - Dg Models	00	Appelez-nous	-
013	WP8563585		Adjustable Leg And Nut   (Replaces: Y305087)	00		Immediately	$ 13.28
014	Y305190		Top Cover-white	00	Appelez-nous	-
015	NLA		Cabinet-white	00	Appelez-nous	-
016	NLA		Knob And Screw	00	Appelez-nous	-
017	Y310632		Screw	00	Appelez-nous	-
018	310933		Fastener	00	Appelez-nous	-
019	WP90767		Screw   (Replaces: Y313559)	00		Immediately	$ 7.04
020	Y313908		Door Panel-white	00	Appelez-nous	-
021	NLA		Top Cover Plate	00	Appelez-nous	-
022	NLA		Screw	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
