Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 WP90767 Screw   (Replaces: 211294) 02 In-Stock Immediately $ 7.04

002 NLA Screw Assm - Blue Block Ope 02 Appelez-nous -
003 Y303349 Shut-off, Gas Valve 02 Appelez-nous -
004 Y303368 Cone, Combustion 02 Appelez-nous -
005 Y303369 Inlet Duct Assembly (dg) 02 Appelez-nous -
006 WP338906 Sensor, Radiant   (Replaces: Y303377) 02 In-Stock Immediately $ 46.72

007 Y303383 Pipe & Bracket Assy. 02 Appelez-nous -
008 WP303395 Thermostat, Hi-limit (gas)   (Replaces: 303395) 02 In-Stock Immediately $ 66.35

009 Y303841 Cone, Extension (combustion) 02 Appelez-nous -
010 4391996 Igniter Assy, Gas Valve   (Replaces: 304970) 02 In-Stock Immediately $ 42.36

011 304971 Screw 02 Appelez-nous -
012 WP33002793 Burner Assembly   (Replaces: 304974) 02 Special Order $ 161.35

013 NLA Main Burner Orifice Kit-lpg 02 Appelez-nous -
014 279834 Coil, Secondary--w   (Replaces: 306105) 02 In-Stock Immediately $ 29.57

015 58804A Coil, Holding & Booster--w   (Replaces: 306106) 02 In-Stock Immediately $ 28.02

016 WP306176 Valve, Gas   (Replaces: 306176) 02 Special Order $ 335.71

017 306184 Plug, Blocking (lpg Regulator) 02 Appelez-nous -
018 MAL9000AXX Convers.kit (nat To Lp)----s   (Replaces: Y306195) 02 Special Order $ 72.26

019 WP33002924 Conversion Kit (lp To Natural)   (Replaces: 306204) 02 Special Order $ 100.25

020 Y310632 Screw 02 Appelez-nous -
021 Y312890 Retainer, Heater Chamber 02 Appelez-nous -
022 WP90767 Screw   (Replaces: Y313559) 02 In-Stock Immediately $ 7.04

023 Y313561 Screw----na 02 Special Order $ 5.27

024 WP90767 Screw   (Replaces: 314082) 02 In-Stock Immediately $ 7.04

025 314566 Bracket, Gas Valve 02 Appelez-nous -
026 WP694424 Leak Limiter (lpg)   (Replaces: 314602) 02 Special Order $ 31.11


    View Diagram in Separate Window     Print Icon   Print Part List

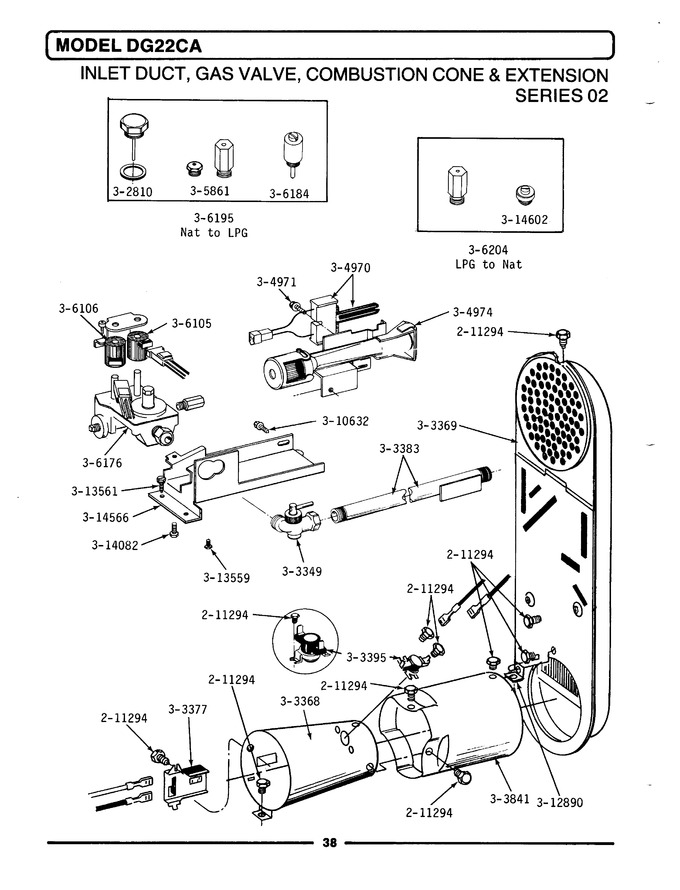

Diagram for DG22CA
