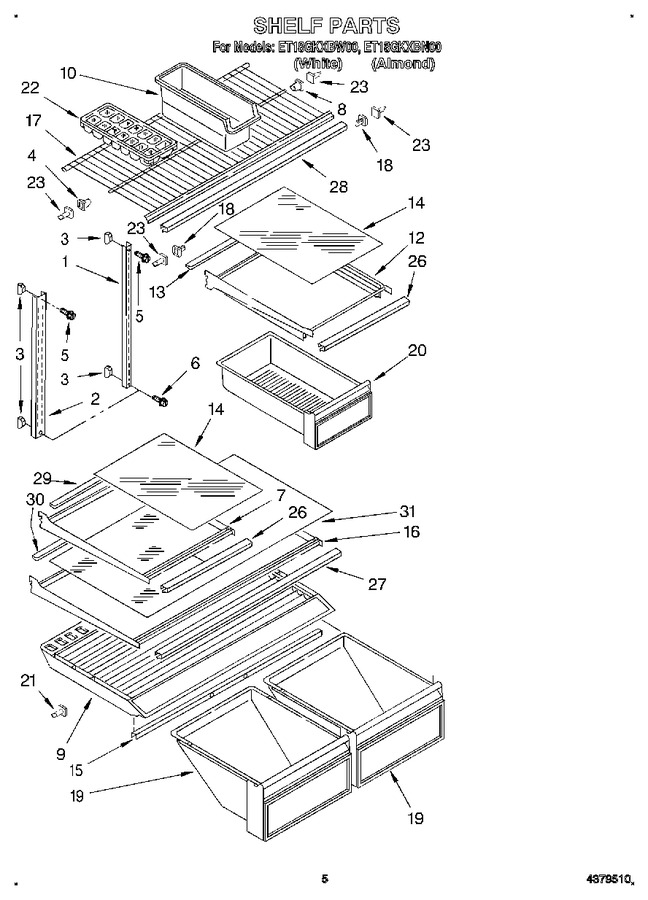

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 26.87
4	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 35.71
5	489345		Screw,		Appelez-nous	-
6	WP488163		Screw,   (Replaces: 488163)				$ 6.79
7	1116693		Shelf, Cantilever		Appelez-nous	-
8	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 35.71
9	2170805		Crisper Cover		Appelez-nous	-
10	WP982704		Container Cover   (Replaces: 1116917)				$ 27.90
12	1116703		Pan Shelf, Cantilever		Appelez-nous	-
13	1118119		Retainer, Glass		Appelez-nous	-
14	1116699		Glass, Meat Cover		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2172750)				$ 87.50
16	1116688		Shelf, Full Cantilever		Appelez-nous	-
17	1116722		Shelf, Freezer		Appelez-nous	-
18	946356		Shelf Stud		Appelez-nous	-
19	2170806		Pan, Crisper		Appelez-nous	-
20	2170807		Pan, Meat		Appelez-nous	-
21	1106612		Shelf Stud (2)				$ 7.56
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 41.00
23	946355		Support, Stud		Appelez-nous	-
26	2162940		Trim, Shelf		Appelez-nous	-
27	2170595		Trim, Shelf		Appelez-nous	-
28	2162933		Trim, Door		Appelez-nous	-
29	2162942		Reflector		Appelez-nous	-
30	2163585		Reflector		Appelez-nous	-
31	1116690		Glass		Appelez-nous	-
