SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf

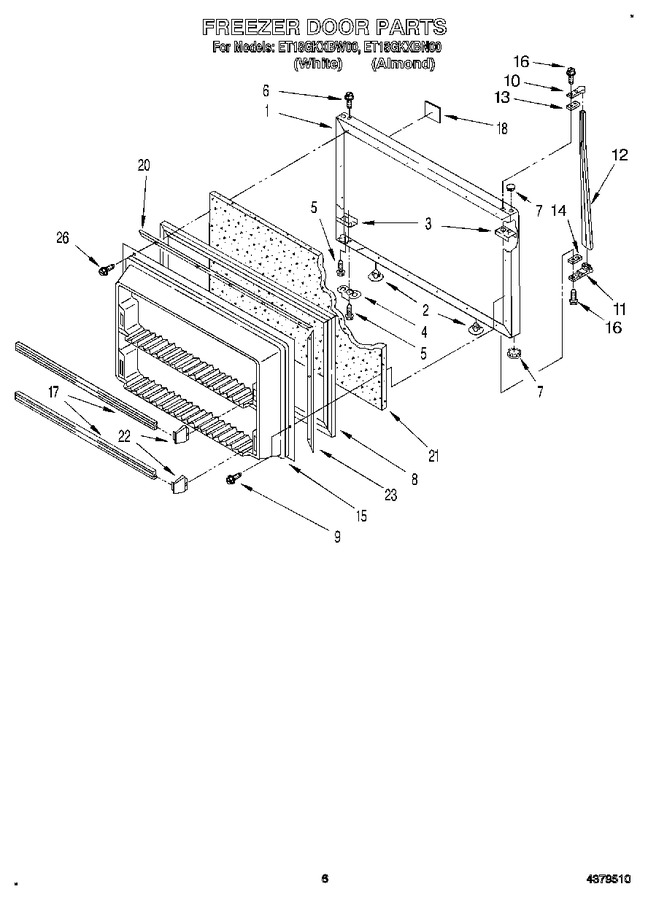

05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157708		Freezer Door Panel (also Order Item 21) (white)		Appelez-nous	-
1	2157711		Freezer Door Panel (also Order Item 21) (almond)		Appelez-nous	-
2	989196		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw   (Replaces: 489028)				$ 7.15
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
7	989197		Hole Plug (almond)		Appelez-nous	-
8	1116735		Door Gasket Magnetic		Appelez-nous	-
9	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.07
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
10	WP2191882		Handle End, Top   (Replaces: 943184)				$ 53.80
11	2148503		Handle End		Appelez-nous	-
12	2159623		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2159624)			Immediately	$ 135.10
13	943188		Shim, Handle				$ 7.80
14	943187		Spacer, Handle Door				$ 25.14
15	1116610		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 6.74
17	WP2201061		Trim, Door Shelf (2)   (Replaces: 2173519)				$ 106.56
18	2162782		Nameplate (almond)		Appelez-nous	-
18	2162781		Nameplate (white)		Appelez-nous	-
20	1115137		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1106862		End Cap				$ 5.70
23	1115138		Retainer, Gasket		Appelez-nous	-
26	WP488729		Screw   (Replaces: 489287)			Immediately	$ 7.01

    View Diagram in Separate Window       Print Part List
