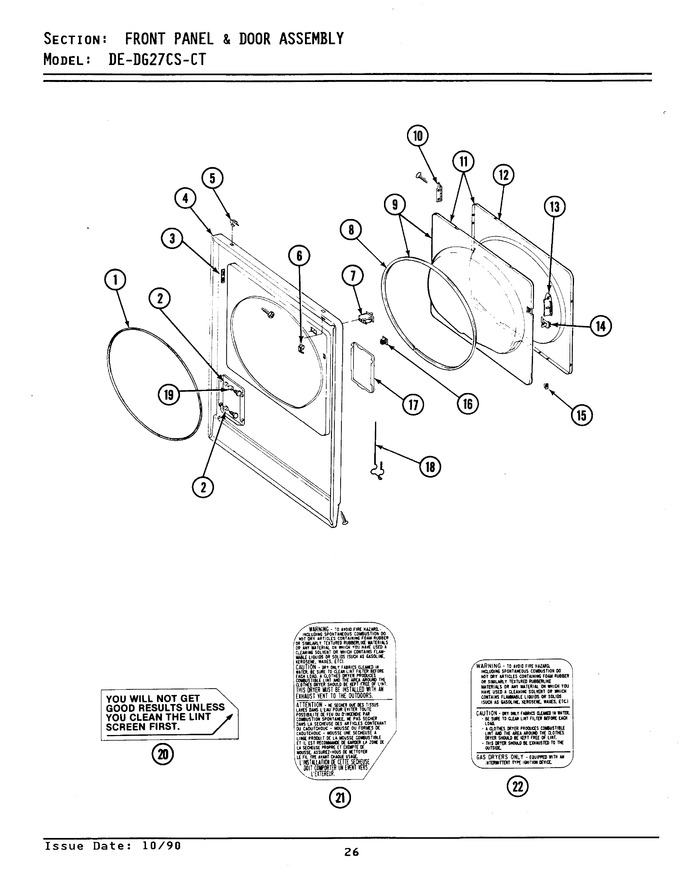

07 - Front Panel & Door Assembly


08 - Front View


09 - Rear View


10 - Thermostats


11 - Inlet Duct, Gas Valve & Combustion Cone


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	314937		Seal, Front Panel	00			$ 5.00
002	NLA		Bushing	00	Appelez-nous	-
003	Y313907		Twin Fastener	00	Appelez-nous	-
004	204439		Screw & Fstner Assy(frt.panel)	00			$ 8.80
004	212949		Screw	00	Appelez-nous	-
004	307998L		Front Panel (alm)	00	Appelez-nous	-
004	NLA		Front Panel (wht)	00	Appelez-nous	-
005	WP22001650		Fastener, Panel   (Replaces: 212982)	00		Immediately	$ 7.34
006	Y310376		Clip, Wire Harness	00	Appelez-nous	-
007	W10169313		Switch, Door   (Replaces: Y305754)	00		Immediately	$ 29.18
008	314935		Door Seal	00	Appelez-nous	-
009	308069		Inner Door	00	Appelez-nous	-
010	307099		Hinge	00	Appelez-nous	-
010	Y314062		Screw	00			$ 12.03
011	NLA		Door, Complete Less Hinges (wh	00	Appelez-nous	-
012	314967		Door W/win Cut Out Outer Wht	00	Appelez-nous	-
012	NLA		Door W/win Cut Out Outer Almna	00	Appelez-nous	-
013	314939		Handle (white)	00			$ 32.46
013	314974		Handle, Door (almond)	00	Appelez-nous	-
013	314975		Handle (harvest Wheat)	00	Appelez-nous	-
014	WP33001305		Door Strike   (Replaces: 314936)	00			$ 2.31
014	WP33001305		Strike Plate   (Replaces: 314944)	00			$ 2.31
015	Y313910		Clip, Door Liner To Outer Pnl	00	Appelez-nous	-
016	306436		Door Latch Kit--w	00		Immediately	$ 10.17
017	NLA		Access Door (wht)	00	Appelez-nous	-
018	Y314025		Latch For Access Door	00	Appelez-nous	-
019	312369		Rubber Sleeve	00	Appelez-nous	-
020	Y313340		Label, Lint Screen Instruction	00	Appelez-nous	-
021	314941		Label, Instruction	00	Appelez-nous	-
022	NLA		Instruction Label	00	Appelez-nous	-
