SELECT A DIAGRAM

01 - Lint Screen, Tumbler (front & Back)


02 - Motor, Blower & Base Frame


03 - Installation Accessories


04 - Control Center Shroud


05 - Control Center


06 - Control Center Components


07 - Front Panel & Door Assembly

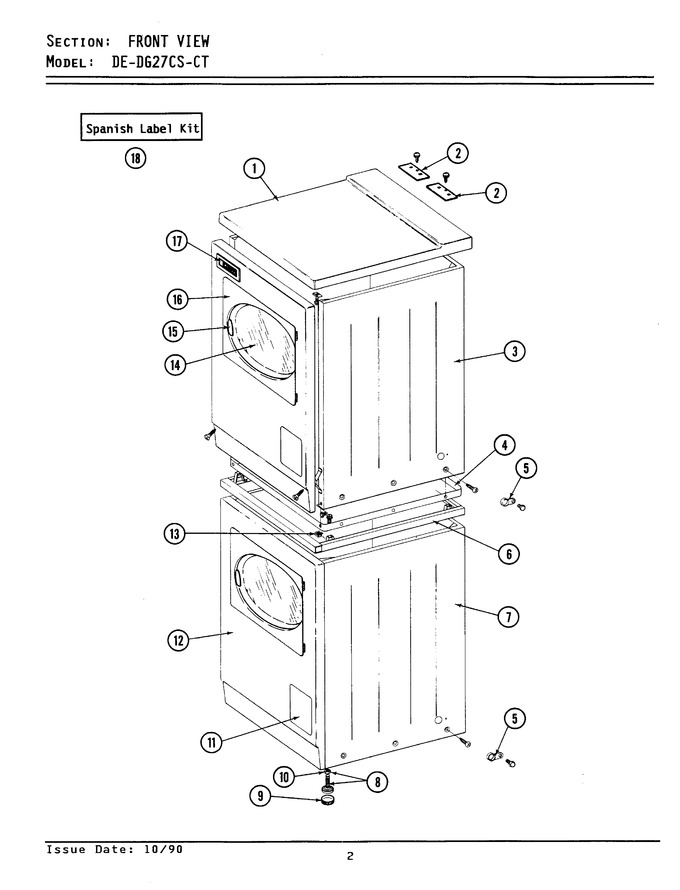

08 - Front View


09 - Rear View


10 - Thermostats


11 - Inlet Duct, Gas Valve & Combustion Cone


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	307104		Top Cover Assy	00	Appelez-nous	-
001	NLA		Top Cover Assy	00	Appelez-nous	-
002	NLA		Cover Plate	00	Appelez-nous	-
002	WP90767		Screw   (Replaces: Y313559)	00		Immediately	$ 7.04
003	204445		Screw & Fastener Asy.	00	Appelez-nous	-
003	213007		Screw, Cabinet	00			$ 10.99
003	NLA		Cabinet, Upper (white)	00	Appelez-nous	-
004	314663		Screw	00	Appelez-nous	-
004	Y303361		Base Assy.	00	Appelez-nous	-
005	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	00			$ 6.75
005	910768		Cable Strap-harness To Base	00	Appelez-nous	-
006	NLA		Spacer Assm-white	00	Appelez-nous	-
007	307125		Cabinet, Lower (white)	00	Appelez-nous	-
007	NLA		Cabinet, Lower (almond)	00	Appelez-nous	-
008	22003428		Leg, Adjustable (w/nut)---s   (Replaces: Y302699)	00		Immediately	$ 14.41
009	WP210684		Foot, Rubber   (Replaces: 210684)	00		Immediately	$ 14.09
010	WP210385		Nut, Lock   (Replaces: 210385)	00			$ 6.26
011	NLA		Access Door (white)	00	Appelez-nous	-
012	204439		Screw & Fstner Assy(frt.panel)	00			$ 8.80
012	307998L		Front Panel (alm)	00	Appelez-nous	-
012	NLA		Front Panel-white	00	Appelez-nous	-
013	310933		Fastener	00	Appelez-nous	-
014	308069		Inner Door	00	Appelez-nous	-
015	314939		Handle, Door (white)	00			$ 32.46
015	314974		Handle, Door (almond)	00	Appelez-nous	-
015	314975		Handle, Door (harvest Wheat)	00	Appelez-nous	-
016	NLA		Door, Complete Less Hinges (wh	00	Appelez-nous	-
017	NLA		Name Plate	00	Appelez-nous	-
018	NLA		Spanish Label Kit	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
