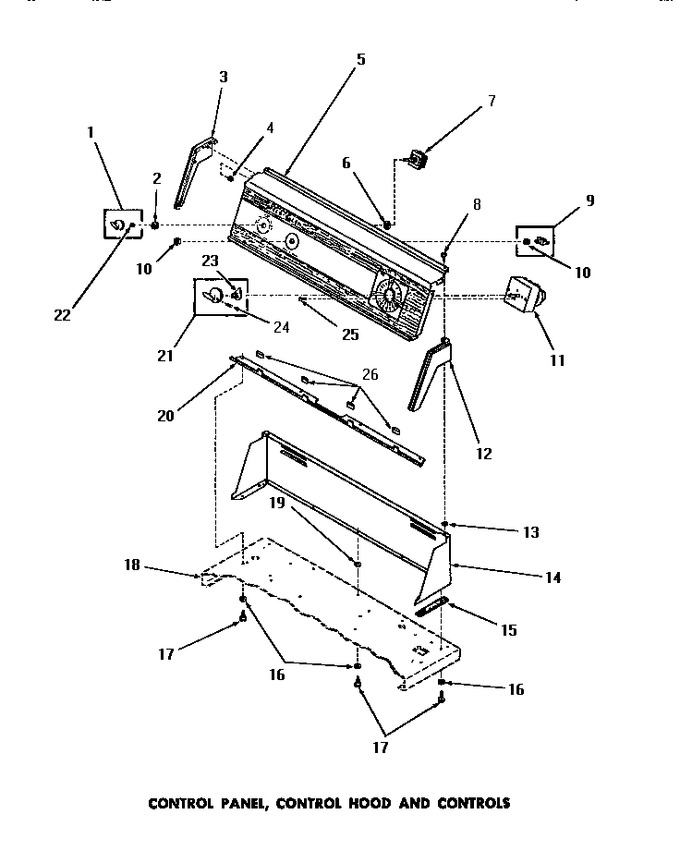

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
22245 |
|
Xreplace |
|
Appelez-nous
|
- |
|
|
|
| 2 |
24205 |
|
Nut,knurled 3/8-24 |
|
|
|
$ 244.00 |
|
|
| 3 |
25124 |
|
Control Hood End, Left |
|
Appelez-nous
|
- |
|
|
|
| 4 |
25126 |
|
Palnut,3/16 Sf188 |
|
Appelez-nous
|
- |
|
|
|
| 5 |
Y0053958 |
|
Fuse, Thermal |
|
Appelez-nous
|
- |
|
|
|
| 6 |
91176 |
|
Lockwasher,3/8 Intshkp |
|
|
|
$ 1.44 |
|
|
| 7 |
53380 |
|
Temperature Selector Switch |
|
Appelez-nous
|
- |
|
|
|
| 8 |
25232 |
|
Screw,8ab-18x7/8 Oval |
|
Appelez-nous
|
- |
|
|
|
| 9 |
55882 |
 |
Assy, Switch (Replaces: 53768) |
|
|
Immediately |
$ 61.79 |
|
|
| 10 |
Sub. To D513506 |
|
Nut,hex 15/32-32 (Replaces: 52947) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
52167 |
|
Timer |
|
Appelez-nous
|
- |
|
|
|
| 12 |
25123 |
|
Control Hood End, Right |
|
Appelez-nous
|
- |
|
|
|
| 13 |
24522 |
|
Nut,speed-8ab-18 C1995 |
|
Appelez-nous
|
- |
|
|
|
| 14 |
53446A |
|
Control Hood, Avocado |
|
Appelez-nous
|
- |
|
|
|
| 14 |
53446C |
|
Control Hood, Coppertone |
|
Appelez-nous
|
- |
|
|
|
| 14 |
53446H |
|
Control Hood, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 14 |
53446W |
|
Control Hood, White |
|
Appelez-nous
|
- |
|
|
|
| 15 |
23028 |
|
Gasket,control Box End |
|
Appelez-nous
|
- |
|
|
|
| 16 |
20493 |
|
Washer,11/64idx3/8odx3 |
|
Appelez-nous
|
- |
|
|
|
| 17 |
WP90767 |
 |
Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
|
Immediately |
$ 7.04 |
|
|
| 18 |
Y00000000 |
|
See Note Cabinet Top |
|
Appelez-nous
|
- |
|
|
|
| 19 |
23425 |
|
Washer,7/32idx7/16odx. |
|
Appelez-nous
|
- |
|
|
|
| 20 |
52912 |
|
Panel Support Bracket |
|
Appelez-nous
|
- |
|
|
|
| 21 |
24858 |
|
Assy,knob-timer |
|
Appelez-nous
|
- |
|
|
|
| 22 |
22244 |
|
Clip,c Xreplace |
|
Appelez-nous
|
- |
|
|
|
| 23 |
24857 |
|
Indicator |
|
Appelez-nous
|
- |
|
|
|
| 24 |
25285 |
|
Setscrew |
|
Appelez-nous
|
- |
|
|
|
| 25 |
70212 |
|
Screw,8-32 X 5/32 Rd H |
|
Appelez-nous
|
- |
|
|
|
| 26 |
24859 |
|
Sleeve,support Angle |
|
Appelez-nous
|
- |
|
|
|
