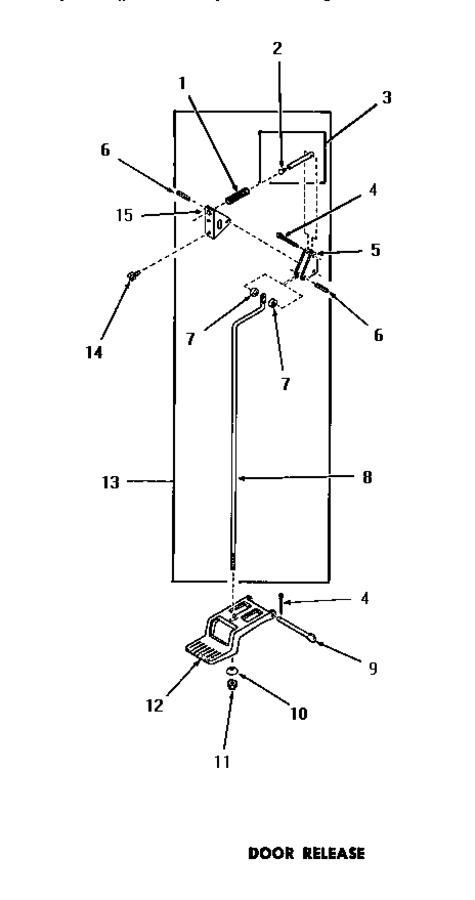

10 - Door Release


11 - Drum Light & Cover Plate


12 - Drum Light & Cover Plate


13 - Exhaust Fan


14 - Front Frame & Air Shroud


15 - Heater Box


16 - Loading Door


17 - Loading Door (thru Sn 31v9368 & S66y580)


18 - Motor, Idler & Belt


19 - Panels


20 - Rear Frame & Frame Base


21 - Wire & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	51065		Door Release Spring		Appelez-nous	-
2	51786		Plug		Appelez-nous	-
3	51841		Door Release Pin Assembly		Appelez-nous	-
4	02578		Pin,cotter		Appelez-nous	-
5	51041		Door Release Lever				$ 55.10
6	51161		Pin,roll 1/8 X 3/4		Appelez-nous	-
7	51121		Door Release Spacer		Appelez-nous	-
8	51837		Door Release Rod		Appelez-nous	-
9	51045		Pedal Hinge Pin				$ 20.25
10	51046		Nylon Washer				$ 21.05
11	51271		Nut		Appelez-nous	-
12	51802		Pedal,foot		Appelez-nous	-
13	51844		Door Release Assembly		Appelez-nous	-
14	51246		Screw		Appelez-nous	-
15	51052		Door Release Bracket				$ 2.28
