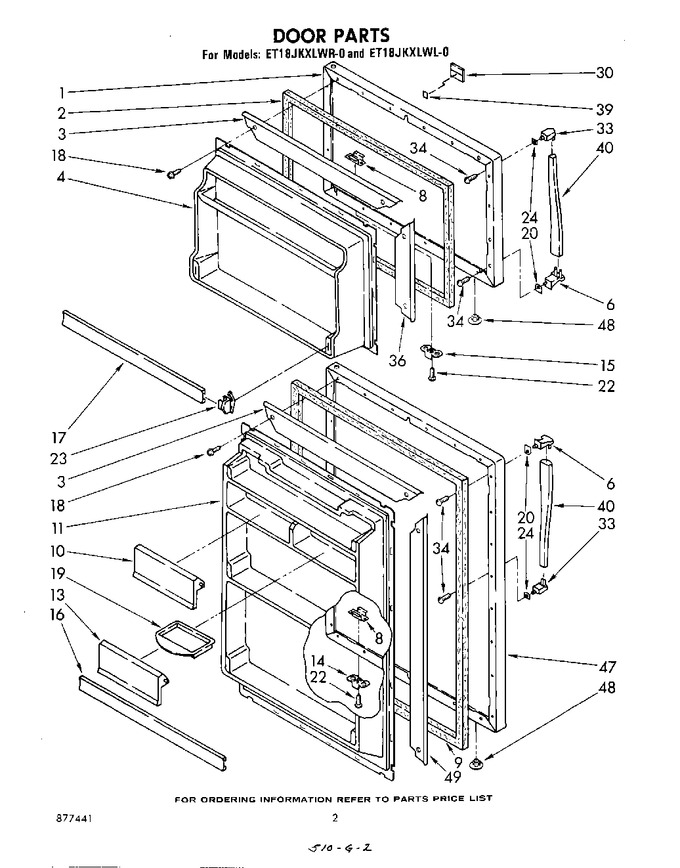

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944130		Door, Freezer (r.h. Model) (golden Harvest)		Appelez-nous	-
1	944132		Door, Freezer (r.h. Model) (almond)		Appelez-nous	-
1	944131		Door, Freezer (r.h. Model) (new Avocado)		Appelez-nous	-
1	944122		Door, Freezer (r.h. Model) (white)		Appelez-nous	-
1	944123		Door, Freezer (r.h. Model) (coffee)		Appelez-nous	-
1	944125		Door, Freezer (r.h. Model) (new Avocado)		Appelez-nous	-
1	944124		Door, Freezer (r.h. Model) (golden Harvest)		Appelez-nous	-
1	944126		Door, Freezer (r.h. Model) (almond Door, Freezer (l.h. Model))		Appelez-nous	-
1	944128		Door, Freezer (r.h. Model) (white)		Appelez-nous	-
1	944129		Door, Freezer (r.h. Model) (coffee)		Appelez-nous	-
2	942903		Gasket, Freezer Door		Appelez-nous	-
3	836115		Retainer, Top & Bottom (2)		Appelez-nous	-
4	943129		Panel, Interior		Appelez-nous	-
6	982947		End Cap		Appelez-nous	-
8	943185		Tap Plate (2)		Appelez-nous	-
9	942299		Gasket, Refrigerator Door		Appelez-nous	-
10	939301		Door, Utility		Appelez-nous	-
11	943128		Panel, Interior		Appelez-nous	-
13	939300		Door, Butter		Appelez-nous	-
14	944036		Bracket, Door Stop		Appelez-nous	-
15	944035		Bracket, Door Stop		Appelez-nous	-
16	941030		Trim, Shelf (3)		Appelez-nous	-
17	939778		Trim, Shelf		Appelez-nous	-
18	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
18	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
19	520747		Tray, Butter		Appelez-nous	-
20	941917		Shim, Handle End (2)		Appelez-nous	-
22	488930		Screw (repair)		Appelez-nous	-
22	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
23	982122		Retainer, Door Trim (2)		Appelez-nous	-
24	941918		Shim, Handle End (2)		Appelez-nous	-
30	945119		Nameplate		Appelez-nous	-
33	982948		End Cap		Appelez-nous	-
34	488818		Screw (2)				$ 42.82
36	836119		Retainer, Side (2)		Appelez-nous	-
39	991259		Tape		Appelez-nous	-
40	982943		Handle, Center		Appelez-nous	-
47	944115		Door, Refrigerator (r.h. Model) (coffee)		Appelez-nous	-
47	944117		Door, Refrigerator (r.h. Model) (new Avocado)		Appelez-nous	-
47	944118		Door, Refrigerator (r.h. Model) (almond)		Appelez-nous	-
47	944108		Door, Refrigerator (r.h. Model) (white)		Appelez-nous	-
47	944109		Door, Refrigerator (r.h. Model) (coffee)		Appelez-nous	-
47	944111		Door, Refrigerator (r.h. Model) (new Avocado)		Appelez-nous	-
47	944110		Door, Refrigerator (r.h. Model) (golden Harvest)		Appelez-nous	-
47	944112		Door, Refrigerator (r.h. Model) (almond Door, Refrigerator (l.h. Model))		Appelez-nous	-
47	944114		Door, Refrigerator (r.h. Model) (white)		Appelez-nous	-
47	944116		Door, Refrigerator (r.h. Model) (golden Harvest)		Appelez-nous	-
48	989878		Plug, Hole (2) (coffee)		Appelez-nous	-
48	989197		Plug, Hole (2) (almond)		Appelez-nous	-
48	989879		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
48	534927		Plug, Hole (2) (white)		Appelez-nous	-
48	989880		Plug, Hole (2) (new Avocado)		Appelez-nous	-
49	836117		Retainer, Side (2)		Appelez-nous	-
