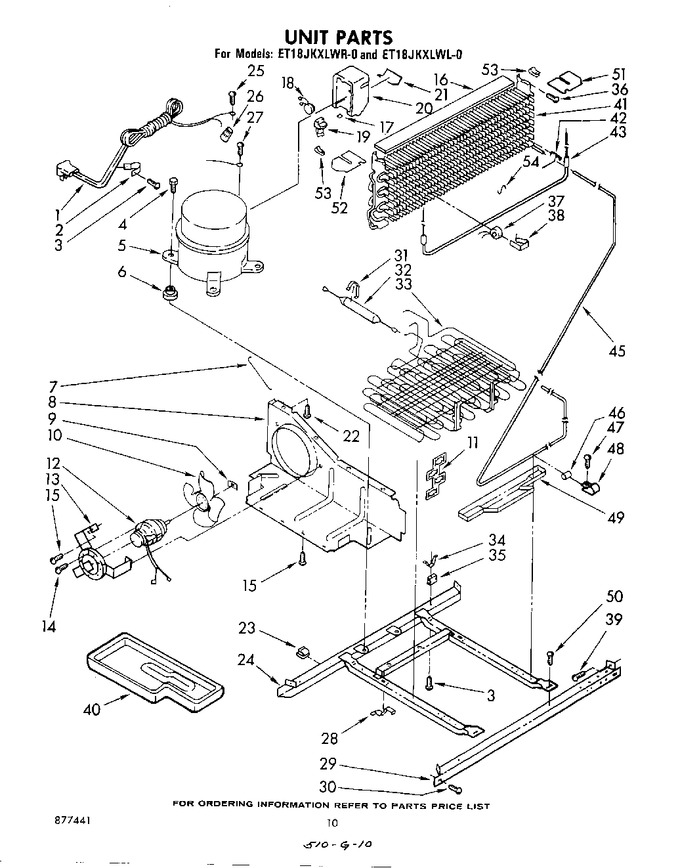

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-cord				$ 12.05
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
4	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
5	464082		Compressor		Appelez-nous	-
6	547283		Grommet (4)		Appelez-nous	-
7	850156		Guard, Fan		Appelez-nous	-
8	850764		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 7.04
10	989524		Fan		Appelez-nous	-
11	987210		Spacer Condenser (4)		Appelez-nous	-
12	833697		Motor   (Replaces: 938164)			Immediately	$ 79.34
13	548695		Bracket, Motor		Appelez-nous	-
14	488868		Screw (use W/851618 Motor) (3)		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	937289		Baffle, Evaporator		Appelez-nous	-
17	547272		Bumper		Appelez-nous	-
18	549041		Overload		Appelez-nous	-
19	989661		Relay (alternate)		Appelez-nous	-
19	989662		Relay		Appelez-nous	-
20	549945		Case, Relay		Appelez-nous	-
21	531318		Spring		Appelez-nous	-
22	489050		Screw, 8-32 X 1/2				$ 623.30
23	548745		Clip, Wire (2)		Appelez-nous	-
24	548655		Frame		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Nut, Wire		Appelez-nous	-
27	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 488879)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	941699		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
33	481846		Condenser & Precooler Assembly		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	548737		Grommet (4)		Appelez-nous	-
36	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
37	WP4387489		Bimetal, Defrost   (Replaces: 937303)				$ 93.42
38	513584		Clamp		Appelez-nous	-
39	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488964)			Immediately	$ 7.01
40	842041		Tray, Evaporating				$ 64.92
41	938337		Evaporator		Appelez-nous	-
42	850721		Clip, Heater (2)		Appelez-nous	-
43	937302		Heater, Defrost		Appelez-nous	-
45	943348		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 19.04
48	510716		Clamp (2)		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
51	939106		Baffle, R.s.		Appelez-nous	-
52	939105		Baffle, L.s.		Appelez-nous	-
53	939104		Retainer, Baffle (2)		Appelez-nous	-
54	942944		Consumer Buy Guide		Appelez-nous	-
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
54	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
54	515393		Transformer (115-230 Volt)		Appelez-nous	-
54	943005		Energy Guide		Appelez-nous	-
54	941726		Service & Wiring Sheet		Appelez-nous	-
54	942943		Care & Use Guide		Appelez-nous	-
54	851358		Support, Heater		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 115.28
54	877441		List, Repair Parts		Appelez-nous	-
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 117.64
54	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
54	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
54	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 208.40
54	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
54	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
54	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
54	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
54	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
54	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
54	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
54	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
54	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
54	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
54	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
54	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
54	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
54	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
54	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
54	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
54	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
54	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
54	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
54	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
54	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
54	833938		Kit, Terminal Connector				$ 7.26
54	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 80.69
