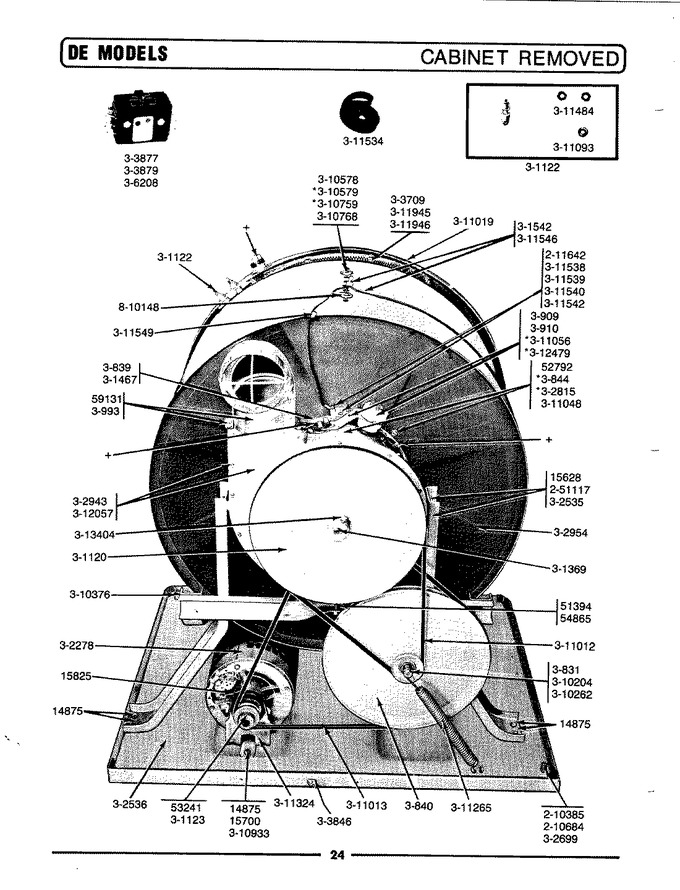

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 014875 | Cap Screw, No.14 X 1/2 | 00 |
|
- | ||||
| 2 | 015628 | Bolt, 5/16 X 3/4 Hex | 00 |
|
- | ||||
| 3 | 015700 | Cap Screw, 1/4-20 X 1/2 | 00 |
|
- | ||||
| 4 | WPY015825 | Clip, Motor (Replaces: Y015825) | 00 |
|
$ 21.03 | ||||
| 5 | 051394 | Bolt, 5/16 X 2-1/8 | 00 |
|
- | ||||
| 6 | 052792 | Screw, 1 1/4-20 X 5/16 | 00 |
|
- | ||||
| 7 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 8 | 054865 | Lock Washer, 5/16 X 3/32 | 00 |
|
- | ||||
| 9 | Y059131 | Elbow, Venting (4``) | 00 |
|
- | ||||
| 10 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 11 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 12 | 211642 | Screw, No.6-20 X 3/8 Inch | 00 |
|
- | ||||
| 13 | 300831 | Shaft And Slide | 00 |
|
- | ||||
| 14 | 300839 | Seal | 00 |
|
- | ||||
| 15 | 300840 | Reduction Pulley | 00 |
|
- | ||||
| 16 | Y300844 | Exhaust Housing | 00 |
|
- | ||||
| 17 | 40A15 | Appliance Bulb - 40 Watt (Replaces: 300909) | 00 |
|
Immediately | $ 1.98 | |||
| 18 | 300910 | Receptacle | 00 |
|
- | ||||
| 19 | Y301120 | Drum Pulley | 00 |
|
- | ||||
| 20 | Y304596 | Terminal Post (Replaces: 301122) | 00 |
|
Immediately | $ 22.97 | |||
| 21 | 301123 | Motor Pulley | 00 |
|
$ 1.02 | ||||
| 22 | 301369 | Shaft With Spider | 00 |
|
- | ||||
| 23 | Y302278 | Motor | 00 |
|
- | ||||
| 24 | 302535 | Support | 00 |
|
- | ||||
| 25 | 302536 | Base | 00 |
|
- | ||||
| 26 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 27 | Y302815 | Blower Housing With Bearing | 00 |
|
- | ||||
| 28 | 302943 | Cover With Lint Seal-blower | 00 |
|
- | ||||
| 29 | 302954 | Drum W/felt - Porcelain | 00 |
|
- | ||||
| 30 | 303709 | Clip And Insulator Assembly | 00 |
|
$ 5.22 | ||||
| 32 | W10850756 | Screw & Washer Assy. (Replaces: 303846) | 00 |
|
$ 6.98 | ||||
| 33 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 34 | 310578 | Washer | 00 |
|
- | ||||
| 35 | Y310759 | Screw | 00 |
|
$ 5.75 | ||||
| 36 | 310768 | Washer | 00 |
|
- | ||||
| 37 | 310933 | Fastener | 00 |
|
- | ||||
| 38 | Y311012 | Drive Belt | 00 |
|
$ 32.09 | ||||
| 39 | Y311013 | Motor Belt | 00 |
|
$ 28.00 | ||||
| 40 | 311019 | Drum Cover | 00 |
|
- | ||||
| 41 | WP311093 | Washer, 7/32 Inch (Replaces: 311093) | 00 |
|
$ 7.25 | ||||
| 42 | 311265 | Spring | 00 |
|
- | ||||
| 43 | 311324 | Motor Base | 00 |
|
- | ||||
| 44 | 311534 | Felt Seal | 00 |
|
- | ||||
| 45 | Y311538 | Carbon Brush Holder | 00 |
|
- | ||||
| 46 | WPW10139210 | Screw,spacer (Replaces: Y312057) | 00 |
|
$ 6.75 | ||||
| 47 | 312479 | Lamp Support For 3-2815 | 00 |
|
- | ||||
| 48 | Y313404 | Set Screw | 00 |
|
- | ||||
| 49 | 211642 | Screw, No.6-20 X 3/8 Inch | 00 |
|
- | ||||
| 50 | 251117 | Lock Washer | 00 |
|
- | ||||
| 51 | 301467 | Slip Ring | 00 |
|
- | ||||
| 52 | 301542 | Wire Harness For Drum | 00 |
|
- | ||||
| 53 | Y303877 | Switch, Motor | 00 |
|
- | ||||
| 54 | Y303879 | Switch, Motor Start-prod. | 00 |
|
- | ||||
| 55 | 306208 | Switch, Motor External Start | 00 |
|
- | ||||
| 56 | 310204 | Snap Ring | 00 |
|
- | ||||
| 57 | 310262 | Washer | 00 |
|
- | ||||
| 58 | 310579 | Screw, No.10-24 X 11/16 Inch | 00 |
|
- | ||||
| 59 | 311048 | Washer, Aluminum | 00 |
|
- | ||||
| 60 | 311056 | Lamp Support | 00 |
|
- | ||||
| 61 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 00 |
|
$ 7.16 | ||||
| 62 | Y311539 | Spring For Carbon Brush | 00 |
|
- | ||||
| 63 | 311540 | Cover For Carbon Brush | 00 |
|
- | ||||
| 64 | Y311542 | Carbon Brush | 00 |
|
- | ||||
| 65 | 311546 | Closed Connector | 00 |
|
- | ||||
| 66 | 810148 | Screw | 00 |
|
- | ||||
| 67 | 301285 | Gas Valve - Natural | 00 |
|
- | ||||
| 68 | 301286 | Pilot Valve | 00 |
|
- |
