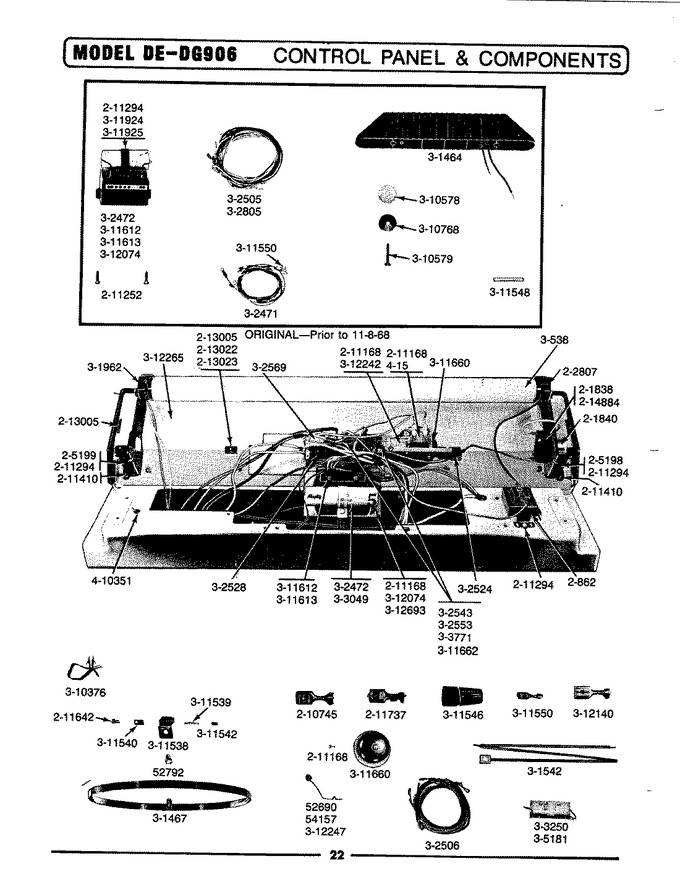

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 052690 | Hex. Nut, No.10-32 | 00 |
|
- | ||||
| 2 | 052792 | Screw, 1 1/4-20 X 5/16 | 00 |
|
- | ||||
| 3 | 054157 | Screw, No.10-32 X 1/4 | 00 |
|
- | ||||
| 4 | 200862 | Ballast | 00 |
|
- | ||||
| 5 | 201838 | Starter Socket | 00 |
|
- | ||||
| 6 | 201840 | Starter | 00 |
|
- | ||||
| 7 | 202807 | Recept For Fluorescent Lamp | 00 |
|
- | ||||
| 8 | 205198 | Bracket Kit - Left Hand | 00 |
|
- | ||||
| 9 | 205199 | Bracket Kit - Right Hand | 00 |
|
- | ||||
| 10 | 210745 | Wire Terminal | 00 |
|
- | ||||
| 11 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 12 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 13 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 14 | 211410 | Screw, Hex Hd No.8 X 3/8 Inch | 00 |
|
$ 6.64 | ||||
| 15 | 211642 | Screw, No.6-20 X 3/8 Inch | 00 |
|
- | ||||
| 16 | WP248562 | Wire Connector (Replaces: 211737) | 00 |
|
$ 6.95 | ||||
| 17 | 213005 | Cushion | 00 |
|
- | ||||
| 18 | 213022 | Retainer | 00 |
|
- | ||||
| 19 | 213023 | Retainer | 00 |
|
$ 6.64 | ||||
| 20 | 214884 | Screw - Lid Switch | 00 |
|
- | ||||
| 21 | Y300538 | Fluorescent Lamp | 00 |
|
- | ||||
| 22 | 301464 | Baffle For Drum | 00 |
|
- | ||||
| 23 | 301467 | Slip Ring | 00 |
|
- | ||||
| 24 | 301542 | Wire Harness For Drum | 00 |
|
- | ||||
| 25 | 301962 | Socket For Lamp | 00 |
|
- | ||||
| 26 | 302469 | Harness For Shroud | 00 |
|
- | ||||
| 27 | 302470 | Harness | 00 |
|
- | ||||
| 28 | WP74011278 | Harness (Replaces: 302471) | 00 |
|
$ 101.56 | ||||
| 29 | WPW10339879 | Electronic Control (Replaces: 302472) | 00 |
|
$ 7.11 | ||||
| 31 | 302506 | Harness | 00 |
|
- | ||||
| 32 | 302524 | Bracket | 00 |
|
- | ||||
| 33 | Y302528 | Control Switch | 00 |
|
- | ||||
| 34 | Y302543 | Spring Assembly | 00 |
|
- | ||||
| 35 | 302553 | Shaft | 00 |
|
- | ||||
| 36 | 302569 | Control Switch | 00 |
|
- | ||||
| 37 | 302805 | Main Wire Harness | 00 |
|
- | ||||
| 39 | 303041 | Main Wire Harness | 00 |
|
- | ||||
| 40 | 303042 | Baffle Ground Wire | 00 |
|
- | ||||
| 41 | 303043 | Baffle Lead Wire | 00 |
|
- | ||||
| 42 | Y303045 | Baffle Assembly | 00 |
|
- | ||||
| 43 | 303049 | Electronic Control | 00 |
|
- | ||||
| 44 | 303054 | Control Harness | 00 |
|
- | ||||
| 45 | Y303250 | Capacitor 15.0 Microfarads | 00 |
|
- | ||||
| 46 | Y303771 | Chime Actuator Assembly | 00 |
|
- | ||||
| 47 | 305181 | Capacitor | 00 |
|
- | ||||
| 48 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 49 | 310578 | Washer | 00 |
|
- | ||||
| 50 | 310579 | Screw, No.10-24 X 11/16 Inch | 00 |
|
- | ||||
| 51 | 310768 | Washer | 00 |
|
- | ||||
| 52 | Y311538 | Carbon Brush Holder | 00 |
|
- | ||||
| 53 | Y311539 | Spring For Carbon Brush | 00 |
|
- | ||||
| 54 | 311540 | Cover For Carbon Brush | 00 |
|
- | ||||
| 55 | Y311542 | Carbon Brush | 00 |
|
- | ||||
| 56 | 311546 | Closed Connector | 00 |
|
- | ||||
| 57 | 311548 | Insulation Sleeve,1-1/4 Inc | 00 |
|
- | ||||
| 58 | Y311550 | Spade (miniature) | 00 |
|
- | ||||
| 59 | 311612 | Cover For Circuit Board | 00 |
|
- | ||||
| 60 | Y311660 | Chime | 00 |
|
- | ||||
| 61 | 311662 | Link - Solenoid To Switch | 00 |
|
- | ||||
| 62 | 311924 | Clamp Retainer | 00 |
|
- | ||||
| 63 | 311925 | Clamp For Capacitor | 00 |
|
- | ||||
| 64 | 312074 | Bracket F/electronic Contro | 00 |
|
- | ||||
| 65 | Y312140 | Wire Connector | 00 |
|
- | ||||
| 66 | 312242 | Bracket | 00 |
|
- | ||||
| 67 | Y312247 | Wire | 00 |
|
- | ||||
| 68 | 312265 | Glass For Control Panel | 00 |
|
- | ||||
| 69 | 312693 | Bracket | 00 |
|
- | ||||
| 70 | 400015 | Solenoid | 00 |
|
- | ||||
| 71 | 410351 | Harness Retainer | 00 |
|
- |
