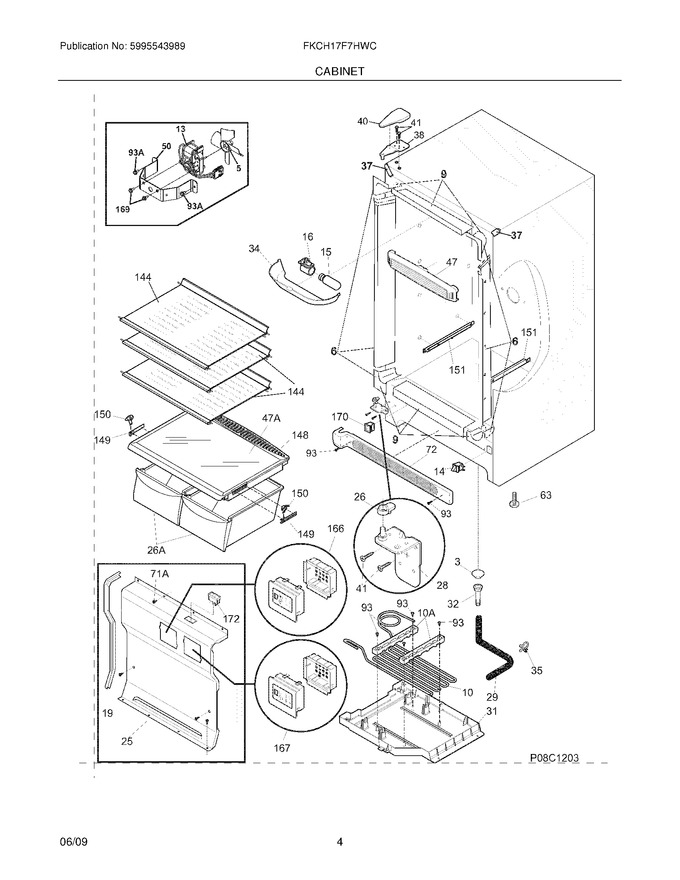

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
16	297139500		Socket,light/lamp				$ 18.08
19	216204900		Gasket, Evap Cover				$ 51.45
25	297098853		Cover-evaporator				$ 91.93
26	297248200		Ramp,door Closer ,lh				$ 12.77
28	297283901		Hinge-bottom,stepped Pin ,lh				$ 25.52
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165800		Pan-drain				$ 89.15
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
144	297178100		Shelf-assy,fixed,glass ,(3) ,complete		Appelez-nous	-
148	216995501		Cover-crisper Pan		Appelez-nous	-
149	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
150	5304492617		Knob,humidity Cont.   (Replaces: 240361202)			Immediately	$ 8.69
151	216988200		Support-crspr Cover,rh				$ 68.04
151	216988201		Support-crspr Cover,lh				$ 67.33
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
170	297280400		Valve,breather				$ 10.13
172	297251200		Switch,w/harness		Appelez-nous	-
10A	297177400		Bracket,(2) ,drain Pan		Appelez-nous	-
26A	216959900		Pan-crisper,(2)				$ 169.68
47A	240350608		Insert-pan Cover,glass   (Replaces: 240350650)			Immediately	$ 45.50
71A	297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	241500305		Screw,no.8 ,18x.63 ,self Pierce   (Replaces: 297174300)				$ 3.03
F10	297175600		Heater-drain Pan		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F166	297282800		Electronic Control,freezer ,assy   (Replaces: 297239300)				$ 218.30
F167	297282700		Electronic Control,refrigerator ,assy   (Replaces: 297239400)				$ 238.89
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	216327800		Clip,wire		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297283900		Hinge-bottom,stepped Pin			Immediately	$ 54.23
NI	216503300		Ramp,door Closer				$ 8.82
NI	216910409		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
