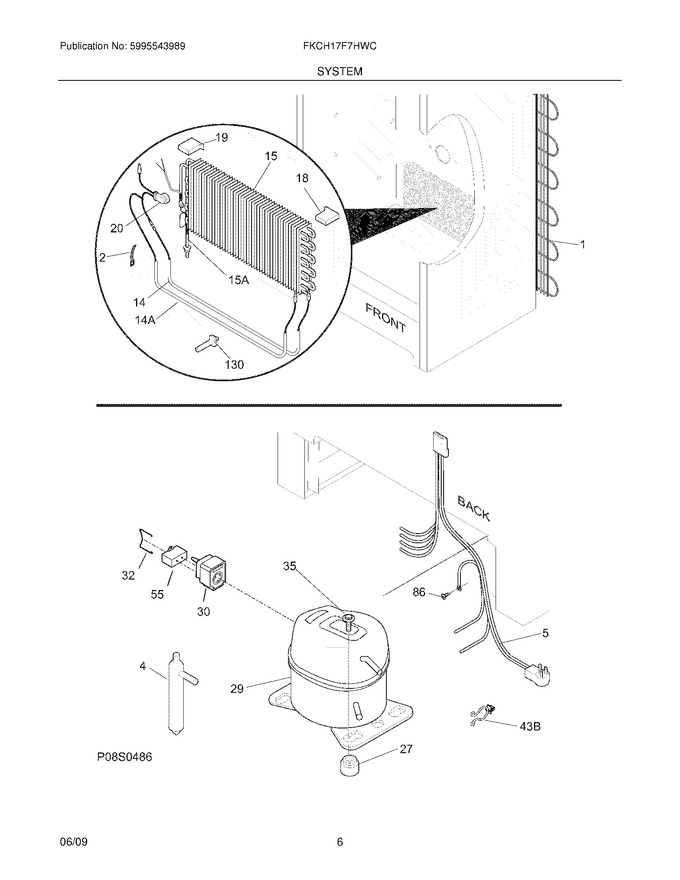

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
14	216730700		Heater-defrost   (Replaces: 297216101)			Immediately	$ 116.44
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
27	297293300		Grommet,compressor		Appelez-nous	-
30	216954224		Controller,compressor			Immediately	$ 77.97
32	216649200		Clip,controller				$ 6.30
35	297177200		Bolt,compressor		Appelez-nous	-
55	297286812		Capacitor,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 11.78
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 91.82
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300083897		Condenser				$ 538.37
F14A	297222900		Heater		Appelez-nous	-
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F29	5304478809		Compressor,w/o Electricals   (Replaces: 297270420)			Immediately	$ 584.96
F5	297244300		Harness-main				$ 196.14
NI	216502500		Sleeve,suction Line				$ 10.85
NI	216683900		Thermostat,service Part				$ 61.62
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	241500305		Screw,no.8 ,18x.63 ,self Pierce   (Replaces: 297174300)				$ 3.03
NI	216695300		Relay				$ 77.97
NINo.	297366805		Cord-power   (Replaces: 297169904)				$ 68.68
