SELECT A DIAGRAM

01 - Cover


02 - Upper Cab/drum/heater


04 - Motor/blower/belt

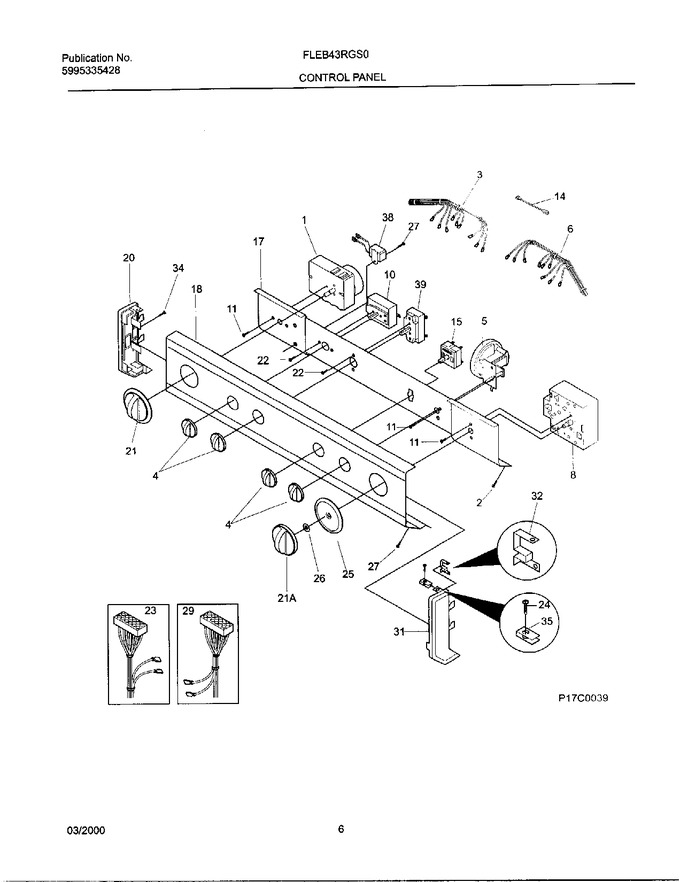

06 - Control Panel


08 - Lower Cabinet/top


10 - Motor/tub


12 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw			Immediately	$ 14.18
3	131946400		Harn-cont-lcd Wj Elec Tts		Appelez-nous	-
4	131858004		Knob-rotary,white   (Replaces: 5303319288)			Immediately	$ 55.29
5	131827400		Switch-pressure		Appelez-nous	-
6	131668500		Harnes-cont Wshr		Appelez-nous	-
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor		Appelez-nous	-
17	131712711		Bracket-control		Appelez-nous	-
18	131933400		Trimplate Fdl/g8wjsj		Appelez-nous	-
20	131288101		End Cap-lh-white				$ 53.02
21	131859104		Knob-timer,white ,dryer   (Replaces: 5303319290)			Immediately	$ 60.72
22	3161259		Screw				$ 6.83
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw   (Replaces: 131209600)			Immediately	$ 14.89
25	5303319285		Dial-timer,white ,washer				$ 48.56
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	131778700		Harn-lwr Wshr L/c G.e.,29		Appelez-nous	-
31	131288211		End Cap-rh-white				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw				$ 3.36
35	5308014350		Clip		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
39	131753000		Switch-dryer Temp 4 Pos Rot		Appelez-nous	-
21A	5303211165		Knob-timer,white ,washer		Appelez-nous	-
F1	5303297177		Timer - Dryer				$ 229.64
F10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
F15	131620800		Switch-temperature		Appelez-nous	-
F8	131462300		Timer-washer				$ 376.06
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63

    View Diagram in Separate Window       Print Part List
