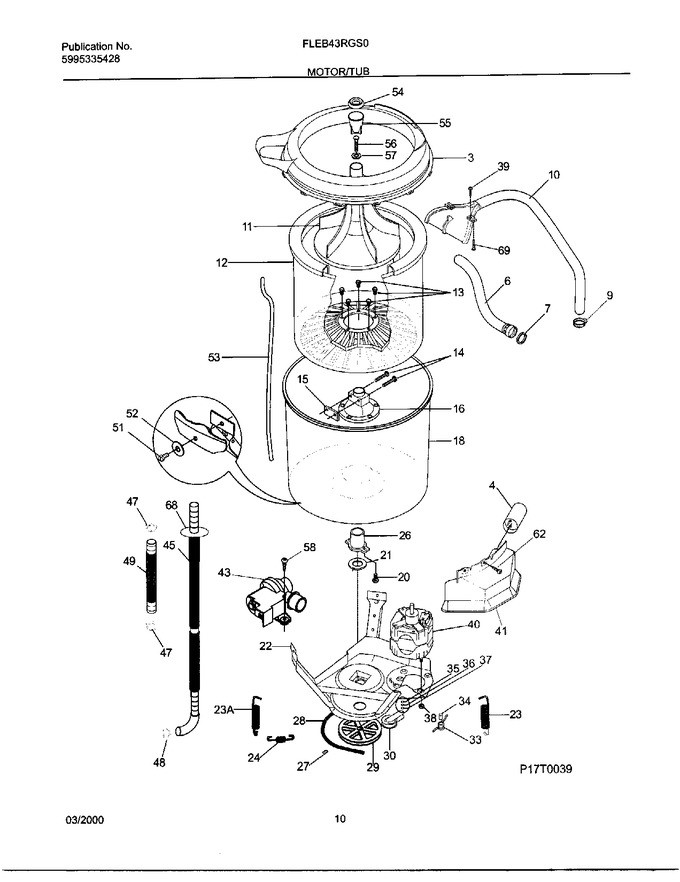

10 - Motor/tub
12 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 131551103 | Cover-splash Tub (Replaces: 131551100) |
|
$ 206.72 | |||||
| 4 | 131212301 | Capacitor |
|
Immediately | $ 10.63 | ||||
| 6 | 3804FF | Hose-inlet (Replaces: 5303271009) |
|
Immediately | $ 16.80 | ||||
| 7 | 5303161296 | Washer |
|
Immediately | $ 2,372.96 | ||||
| 9 | 5304488479 | Clamp (Replaces: 5303304824) |
|
Immediately | $ 32.09 | ||||
| 10 | 131726300 | Hose And Nozzle |
|
- | |||||
| 11 | 131427200 | Agitator |
|
$ 246.02 | |||||
| 12 | 131221300 | Tub-spin |
|
- | |||||
| 13 | 137546400 | Screw (Replaces: 5303283293) |
|
$ 28.35 | |||||
| 14 | 137539500 | Screw (Replaces: 131192800) |
|
$ 20.24 | |||||
| 15 | 137107000 | Lockplate (Replaces: 5308001923) |
|
Immediately | $ 26.94 | ||||
| 16 | 131545101 | Trunnion |
|
$ 162.23 | |||||
| 18 | 131557201 | Tub-splash, W/air Dome, Brng |
|
$ 294.91 | |||||
| 20 | 3205150 | Screw |
|
$ 3.55 | |||||
| 21 | 5308002401 | Washer |
|
Immediately | $ 16.00 | ||||
| 22 | 131373610 | Leg & Dome Assy |
|
$ 313.43 | |||||
| 23 | 134886600 | Spring-vertical (short) (Replaces: 5303208858) |
|
Immediately | $ 37.57 | ||||
| 24 | 131373900 | Spring-horizontal |
|
$ 41.30 | |||||
| 26 | 3204405 | Bearing-outer Tub |
|
Immediately | $ 97.81 | ||||
| 27 | 5303304825 | Screw |
|
- | |||||
| 30 | 131862900 | Asmy-vaw Idler Arm |
|
$ 28.25 | |||||
| 33 | 3204425 | Spring Torsion |
|
$ 45.09 | |||||
| 34 | 3204426 | Sleeve-idler |
|
$ 9.35 | |||||
| 35 | 3161433 | Retaining Ring |
|
$ 18.79 | |||||
| 36 | 5303261031 | Washer-pivot Shaft |
|
$ 12.71 | |||||
| 37 | 5303161306 | Spring Washer |
|
$ 12.49 | |||||
| 38 | 5303318708 | Nut-motor |
|
$ 5.57 | |||||
| 39 | 131205100 | Screw |
|
Immediately | $ 14.18 | ||||
| 40 | 131883700 | Motor-w/pulley |
|
- | |||||
| 41 | 131513300 | Shield-motor |
|
- | |||||
| 43 | 137221600 | Asmy-pump (Replaces: 131724000) |
|
Immediately | $ 189.21 | ||||
| 47 | 5303294768 | Clamp-hose To Tub |
|
- | |||||
| 48 | 5304536802 | Clamp-pump (Replaces: 131306234) |
|
Immediately | $ 4.01 | ||||
| 51 | 131659000 | Screw-leg, Hwh Typ 23, 5/16-18 X .875 |
|
- | |||||
| 52 | 131315800 | Washer |
|
- | |||||
| 53 | 5304401845 | Tube-pressure |
|
$ 58.12 | |||||
| 54 | 131266800 | Cap-dispenser |
|
$ 46.67 | |||||
| 55 | 131206100 | Cup-dispenser |
|
$ 52.82 | |||||
| 56 | 131468900 | Screw-agitator,hwh Shldr `5/16-18x1.250 |
|
$ 11.76 | |||||
| 57 | 131339600 | Spacer |
|
$ 18.79 | |||||
| 58 | 131464900 | Screw-pump-to Bracket |
|
- | |||||
| 62 | 131302800 | Screw (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 68 | 131707800 | Ring-drain Hose |
|
$ 45.25 | |||||
| 69 | 131731500 | Fastener-ratchet |
|
$ 17.01 | |||||
| 23A | 134885900 | Spring-vertical (Replaces: 5303208860) |
|
$ 21.27 | |||||
| F28 | 134511600 | Belt-washer (Replaces: 131686100) |
|
Immediately | $ 28.41 | ||||
| F29 | 131498300 | Pulley-transmission |
|
- | |||||
| F45 | 131461200 | Hose-drain |
|
$ 66.94 | |||||
| F49 | 131494800 | Hose-pump To Tub |
|
Immediately | $ 72.30 | ||||
| NI | 131901400 | Gasket (Replaces: 3204398) |
|
Immediately | $ 21.69 | ||||
| NI | 131462500 | Clip-drain Hose |
|
$ 52.66 | |||||
| NI | 131506500 | Clip-drain Hose |
|
$ 13.76 | |||||
| NI | 5303212877 | Insert-spring Adjustment |
|
$ 18.38 |
